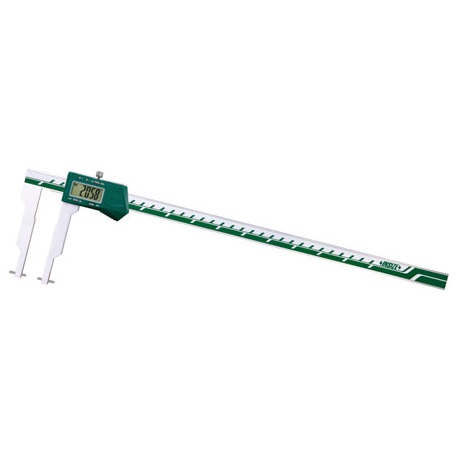

INSIZE 1124-300AWL Wireless Digital Caliper

short spherical/flat points

Range: 24-324mm/1-12.7" (internal) 0-288mm/0-11.3" (external)

Accuracy: ±0.04mm

Aplication: spherical points for grooves inside hole (small hole) flat points for external grooves

long spherical/flat points

Range: 40-340mm/1.5-13.3" (internal) 0-272mm/0-10.7" (external)

Accuracy: ±0.04mm

Aplication:spherical points for grooves inside hole (large hole) flat points for external grooves

short spherical blade points

Range: 40-340mm/1.5-13.3" (internal) 0-272mm/0-10.7" (external)

Accuracy: ±0.04mm

Aplication:for narrow grooves inside hole (small hole)

long spherical blade points

Range:40-340mm/1.5-13.3" (internal) 0-272mm/0-10.7" (external)

Accuracy: ±0.04mm

Aplication:for narrow grooves inside hole (small hole)
