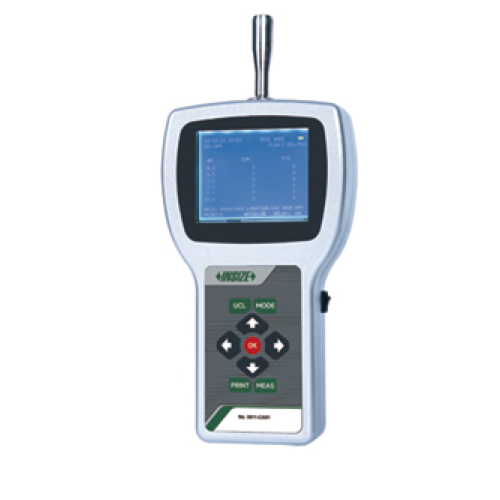

INSIZE 0811-CA01 Handheld Airborne Particle Counter (2.83L/min (0.1ft³))

Sampling Flow:

Range: 2.83L/min (0.1ft³)

Accuracy: ±5%

Particle:

Particle Diameter Passage: 0.3µm, 0.5µm, 1µm, 3µm, 5µm, 10µm, simultaneous counting of six particle diameters

Repeatability: ≤10%FS

Error of Particle Sizes: ±30% (0.5µm, 5µm)

Accuracy: ±30%FS (0.5µm)

Self-cleaning Time: ≤10min

Delay Sampling Time: 0~99s

Sampling Time: 1s~9999s

Sampling Mode: single, repeated, continuous, calculate, remote

Unit Conversion: m³, ft³

Counting Mode: cumulative value, difference value, concentration value

*UCL Setting:

Sampling Points (A): set from 2 to 9

Sampling Times per Point (L): set from 2 to 9

Location: set from 0 to 999

Alarm Setting: the instrument is equipped with a cleanroom level alarm function, which will alarm when it exceeds the standard of class 100, 1000, 10000, 100000, 300000, 1000000, and will also alarm when the battery voltage is too low

Data Storage: store 1000 sets of data (including particle size, data, environmental data, time, sample volume, data location), no data loss after power failure

Environmental Requirement: temperature: 0~40°C, relative humidity: 20~90%, no condensation, the instrument should be used in a non-corrosive air environment

Power Supply: 16.8V rechargeable Li-ion battery, working time 8h

Dimension: 230×130×450mm

Weight: 600g

*Upper confidence limit of 95%

STANDARD DELIVERY:

Main Unit: 1pc

Isokinetic Sampling Port: 1pc

High Efficiency Filter: 1pc

Communication Cable: 1set

Adapter: 1pc

USB Disk: 1pc
