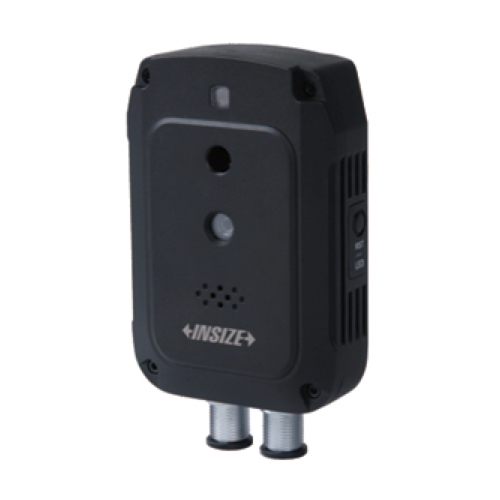

INSIZE 0237-LC550 Online Infrared Thermal Imaging Camera (-20°C~150°C, 100°C~550°C; 3.2mm, 56°×42°)

Infrared image

Detector type: Unrefrigerated vanadium oxide, 7.5µm~14µm

Infrared resolution: 256×192@12µm

Thermal sensitivity / NETD: 45mK@30°C

Lens: 3.2mm, 56°×42°

Focusing mode: Focus-free

Color palettes: 26; white hot, black hot, rainbow, and so on

Featured function: Detail enhancement, 2D/3D noise reduction, image flip, dual light

Temperature measurement

Measurement range: Low: -20°C~150°C, High: 100°C~550°C

Measurement accuracy: ±2°C or ±2%, whichever is greater

Measurement target: Up to 21 targets (spot, line, rectangle, polygon, and circle) can be simultaneously measured

Measurement function: Cold/hot spot tracking, full-screen point temperature measuring, query and export of information

Visible light

Sensor type: 1/2.7" CMOS

Max. resolution: 1920×1080

Min. illuminance: Color: 0.005lux

Lens: 2.8mm, 65°×49°

Fill light: White light

Featured function: Visible light gain control, 2D/3D noise reduction, backlight compensation, wide dynamic, strong-light photoinhibition, image flip, exposure compensation

Interface

Power interface: DC12V±25%

Network interface: 100M/1000M Ethernet port, POE (802.3 at)

Alarm interface: 1 input and 1 output

Other interface: RS485

Environmental parameter

Operating environment: -30°C~60°C, ≤95%RH (non-condensing)

Protection: IP67, TVS 6000V lightning protection and surge protection

Physical parameter

Power: 3.5W

Dimension (L×W×H): 71×30×105mm

Weight: 300g
