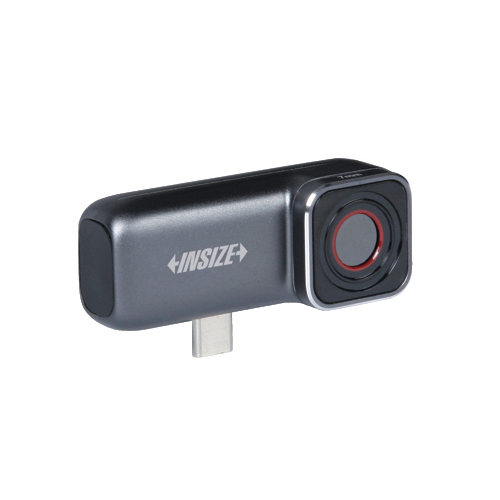

INSIZE 0236-MC150 Infrared Thermal Imaging Camera For Mobile Phone (100m; 256×192 (12μm))

Infrared Detector

Detector type: Unrefrigerated vanadium oxide, 7.5μm ~ 14μm

Infrared resolution: 256×192 (12μm)

Infrared frame rate: 25Hz

Lens

Focal length: 7mm

Field of view: 25°

Focusing mode: Automatic/electric

Detection range: 100m

Temperature Measurement

Measurement range: -20°C ~ 150°C

Measurement accuracy: ±2°C or ±2% (whichever is greater)

Analyzed target: Spot, line, area

Function

Photo and video: Available

Color palettes: 9 — White hot, Fulgurite, Iron red, Hot iron, Medical, North pole, Rainbow 1, Rainbow 2, Black hot; 1 customized

Instant sharing: Images, videos

Power Supply

Voltage: 4.5V~5.5V

Power: 500mW

Environmental Parameter

Operating temperature: -10°C ~ 60°C

Protection: IP43, 1m drop test

Certification: CE, RoHS

Physical Parameter

External interface: USB TYPE-C

Dimension (L×W×H): 59×20×24mm

Weight: 40g
