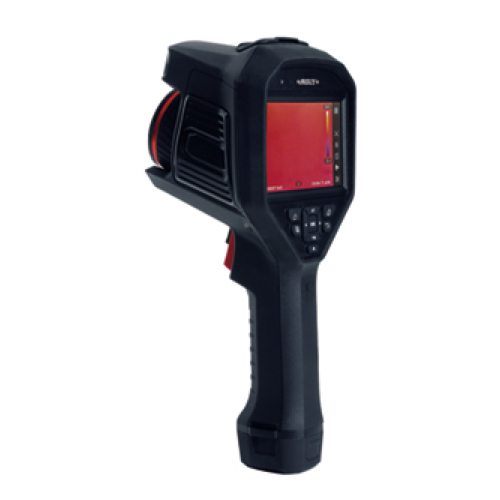

INSIZE 0235-HT480 Infrared Thermal Imaging Camera (19° × 14°; 0.3m)

Detector type: Unrefrigerated detector, 7.5µm ~ 14µm

Infrared resolution: 480 × 360 (Upgradable to 960 × 720)

Thermal sensitivity/NETD: <30mK

Infrared frame rate: 50Hz

Field of view: 19° × 14°

Minimum object distance: 0.3m

Focusing mode: AF / Continuous AF / Laser-assisted AF / Touch AF / Manual focus

Digital zoom: 1.0x ~ 8.0x

Display screen: 4.3" touchscreen LCD, 800 × 480 pixels

Measurement range: -20°C ~ 150°C, 100°C ~ 650°C, 300°C ~ 2000°C (High-temperature lens required)

Measurement accuracy: ±2°C or (±2%) whichever is greater

Measurement tools: Center spot, Hot spot, Cold spot, User-definable: Delta T, 10 spots, 5 rectangles, 5 circles, 1 line

Laser indication: Class 2, Wavelength: 635nm, Power: <1mW

Ranging accuracy: Indoor 50m, Outdoor 15m; Accuracy: 0.1m

Storage: 64G Micro SD card

Image and video storage: JPG (with temperature information), MP4 (without temperature information), HRV (with temperature information)

WiFi & Bluetooth: 802.11 b/g/n (2.4GHz and 5GHz), Bluetooth 4.2

Battery: Interchangeable and rechargeable lithium-ion battery, Operating time: 4 hours

Operating environment: -20°C ~ 50°C, ≤95% RH

Protection: IP54, 2m drop test

Dimension: 285 × 120 × 125mm

Weight: 1.1kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

High-temperature lens: 1 pc

64G SD card: 1 pc

Lithium-ion battery: 2 pcs

Desktop charger: 1 pc

Power adapter: 1 pc

Software: 1 pc
