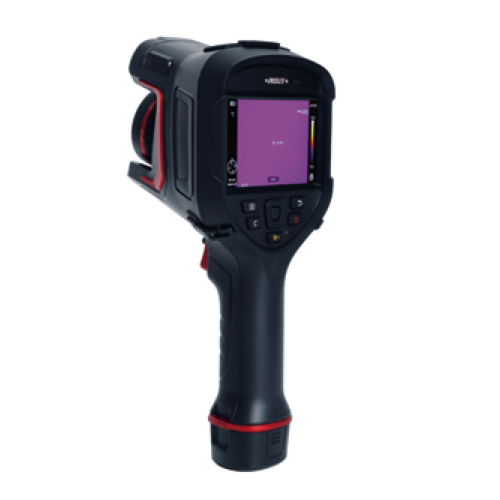

INSIZE 0234-TC850B Infrared Thermal Imaging Cameras (-40°C~150°C, 0°C~650°C, 500°C~2000°C)

Measurement Range: -40°C~150°C, 0°C~650°C, 500°C~2000°C (Auto-Switching) (high temperature lens is required, included)

Measurement Accuracy: ±2°C or ±2%, whichever is greater

Analyzed Target: 12 in total (spot/line/area)

Temperature Alarm: Full screen with image, voice, flash

Display Screen: 4.3" Touchscreen LCD, 800x480 pixel

Infrared Resolution: 480×360@12µm

Super Resolution: Upgrade to 960×720

Thermal Sensitivity/NETD: 45mK

Infrared Frame Rate: 30Hz/9Hz

Field of View: 25°×19°

Spatial Resolution/IFOV: 0.91mrad

Distance to Spot Size (D:S): 1099:1

Digital Zoom: 1.1x~16x

Laser: Indication/ranging (0.1m~40m)

Storage: Built-in 64GB + External SD (up to 256GB)

Image Storage: JPG (with temperature data)

Video Storage: MP4 (audio), IRGD (with temperature data, up to 30Hz)

WIFI: Mobile terminal image/video transmission

Battery Life: ≥4 hours operating time

Protection: IP54, 2m drop test

Dimension: 292×125×125mm

Weight: 1.2kg

Datasheet

Standard delivery

Infrared lens: 1 pc (standard lens)

Main unit: 1 pc

64G SD card: 1 pc

Lithium-ion battery: 2 pcs

Desktop charger: 1 pc

Power adapter: 1 pc

Software: 1 pc
