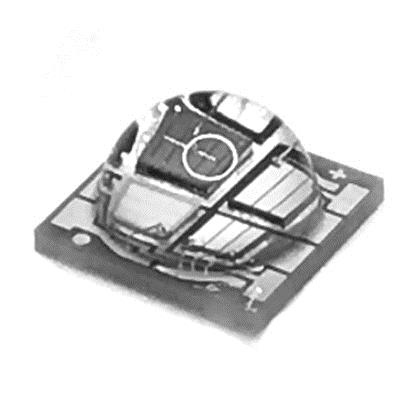

Inolux IN-505FCHWV High Power LEDs RGBW LED

Width: 5 mm

Height: 2.88 mm

Length: 5 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 1.113 g

Mounting Style: SMD/SMT

Lens Transparency: Clear

Illumination Color: RGB, White

Moisture Sensitive: Yes

If - Forward Current: 700 mA

Vf - Forward Voltage: 3.2 V, 4.2 V, 4 V, 4 V

Luminous Flux/Radiant Flux: 80 lm, 150 lm, 25 lm, 180 lm

Wavelength/Color Temperature: 630 nm, 535 nm, 470 nm, 8300 K

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
