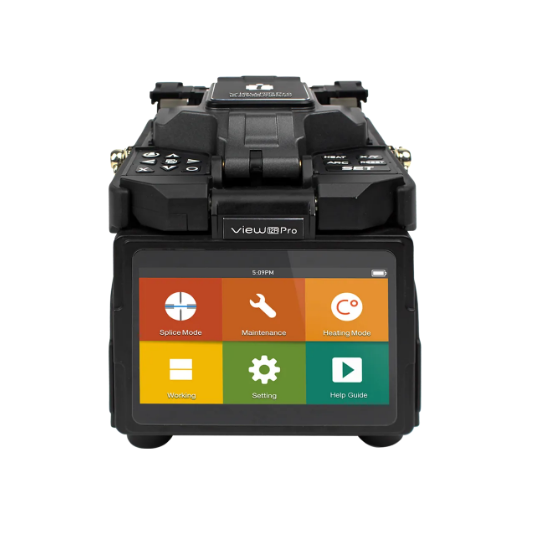

INNO VIEW12R PRO Mass Fusion Splicer (Splice Time: Ribbon Fiber: 15s; Single Fiber: 9s)

GENERAL SPECIFICATIONS

Model: VIEW12R PRO

Number of fiber: 1 ~ 12

Applicable fibers:

SM (ITU-T G.652&G.657)

MM (ITU-T G.651)

DS (ITU-T G.653)

NZDS (ITU-T G.655)

Cladding Diameter: 80~150μm

Coating diameter: 100~3000μm

Cleaved Length: 10 ~ 13mm

Typical Splice Loss*1:

SM: 0.05dB / MM: 0.02dB /

DS: 0.08dB / NZDS: 0.08dB /

G.657: 0.05dB

Return Loss: >> 60dB

Estimated Splice Loss: Available

Splice Time*2: Ribbon Fiber: 15 sec (Avg.); Single Fiber: 9 sec (Avg.)

Splice Mode: Max 128 modes

Heating Sleeve: 20 ~ 60mm

Heating Time*3: Ribbon sleeve (40mm): 20 sec;Single sleeve (60mm): 15 sec

Heating Mode: Max 32 modes

Tension Test: 1.96 ~ 2.25N

Dimension:143W x 159D x 167H mm (including rubber bumper); 130W x 159D x 155H mm (excluding rubber bumper)

Weight: 2.64kg (with battery); 1.98kg (without battery)

White LED: 3 White LEDs

Monitor: 5.0” Color LCD display; Full touch screen

Fiber View: X, Y, XY, X/Y

Magnification: to 250x

Results Storage: 10,000 Splice data;10,000 Splice image

Power Supply: AC Input 100 ~ 240V; DC Input 9 ~ 14V

Terminal: USB Type C / Nano SIM

Battery Capacity*4: LBT-30, Typical usage: 220 cycles /Power save usage : 260 cycles

Electrode Life*5: 3000 arcs discharges

GPS: Available

ENVIRONMENTAL CONDITIONS

Operating Condition:

Altitude: 0 ~ 5000m

Humidity: 0 ~ 95%, non-dew

Temperature: -10 ~ 50 ºC

Wind: up to 15m/sec

Storage Condition:

Humidity: 0 ~ 95%, non-dew

Temperature: -20 ~ 60 ºC

ENVIRONMENTAL TEST

Water Resistance: IPx2

Shock Resistance: Drop from 76cm

Dust Resistance: IP5X
