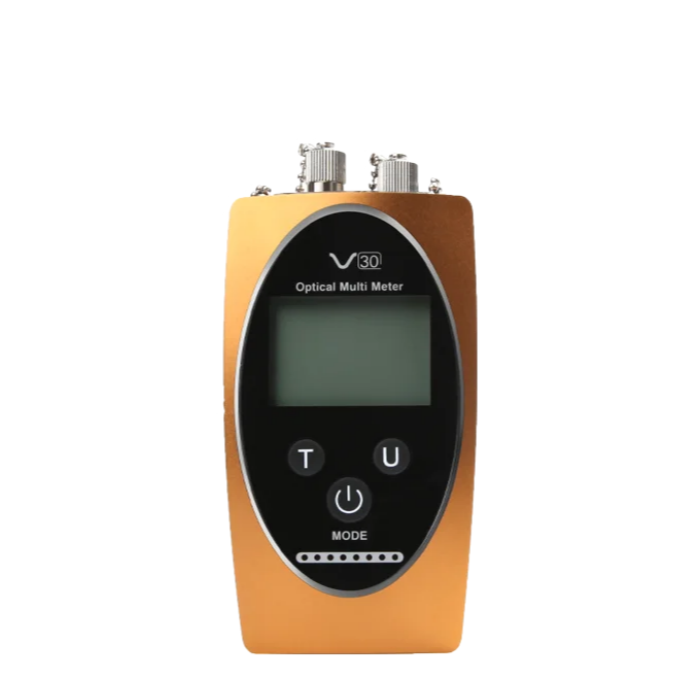

INNO V30 Portable Optical Multi-Meter

Optical Power Meter (OPM)

Sensor type: InGaAs

Fiber port type: SC, FC, ST (Interchangeable)

Calibration wavelength: 850 / 1300 / 1310 / 1490 / 1550 / 1625nm

Measuring range; from +6 to -70dBm

Accuracy: ±0.02dB

Linearity: ±2%

Display unit: dBm, mW, uW

Visual Fault Locator (VFL)

Output power: 1mW

Fiber port type; 2.5mm ferrule type

Laser safety level: Class 2

Wavelength: 650nm ± 20nm

Output mode: Continuous / 2Hz flashing lasers

Reverse current protection: Available

Network cable / Phone line test

Port type: RJ45 / RJ11

Applicable cable / Telephone line: UTP CAT-5 / CAT-5e (2/4/6 core phone lines)

Maximum measuring range: 1Km

Operating temperature / Storage temperature: -10°C ~ +60°C / -20°C ~ +70°C

Relative humidity: < 90%, Non-condensation

Main body weight / Acccessories weight: 127.5g / 28.5g

Main body size / Accessories size: 124H x 60W x 35D mm / 40.3H x 54W x 27.2D mm

Display: Segment display: LCD 1.8in 40x28mm

Battery: 2 pieces of batteries (AA, 1.5V)
