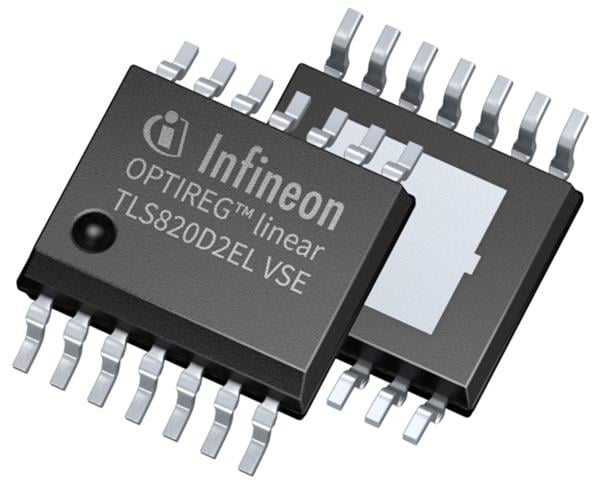

Infineon TLS820D2ELVSEXUMA2 Automotive High Precision LDO OPTIREG LINEAR

Polarity: Positive

Output Type: Adjustable, Fixed

Mounting Style: SMD/SMT

Output Current: 200 mA

Dropout Voltage: 100 mV, 200 mV

Line Regulation: 1 mV

Load Regulation: - 5 mV

Number of Outputs: 1 Output

Quiescent Current: 25 uA

Moisture Sensitive: Yes

Input Voltage - Max: 40 V

Input Voltage - Min: 3 V

Output Voltage Range: 3.3 V to 5 V

Dropout Voltage - Max: 200 mV, 400 mV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB, 63 dB
