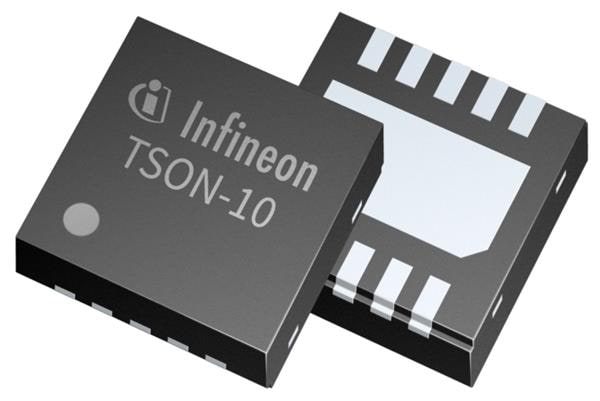

Infineon TLF42772LDXUMA1 Linear Voltage Regulator LINEAR VOLTAGE REGULATOR

Polarity: Positive

Tolerance: 2 %

Output Type: Adjustable

Unit Weight: 20 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: 5 V to 12 V

Dropout Voltage: 200 mV

Line Regulation: 5 mV

Load Regulation: - 5 mV

Number of Outputs: 1 Output

Quiescent Current: 150 uA

Reference Voltage: 1.19 V

Moisture Sensitive: Yes

Input Voltage - Max: 40 V

Input Voltage - Min: 5 V

Output Voltage Range: 5 V to 12 V

Dropout Voltage - Max: 500 mV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 65 dB
