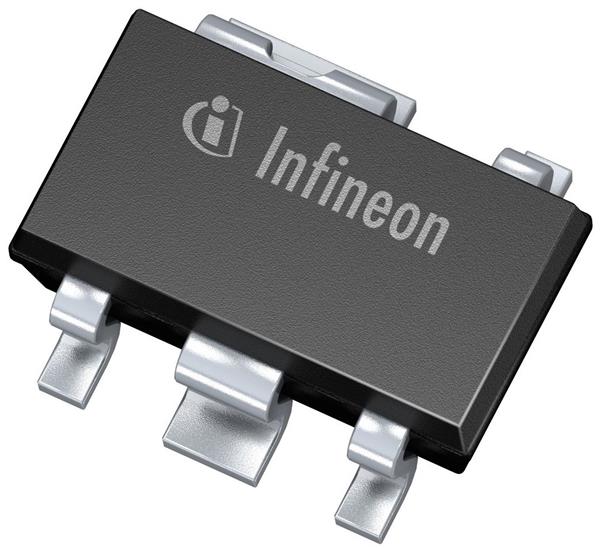

Infineon TLE42502GHTSA1 LDO Voltage Regulators LDO Linear Vltg Tracker 4-45V 50 mA

Width: 1.6 mm

Height: 1.1 mm

Length: 2.9 mm

Polarity: Negative, Positive

Output Type: Adjustable

Unit Weight: 200 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 50 mA

Output Voltage: 40 V

Dropout Voltage: 100 mV

Line Regulation: 10 mV

Load Regulation: 15 mV

Number of Outputs: 1 Output

Quiescent Current: 10 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 4 V

Dropout Voltage - Max: 300 mV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
