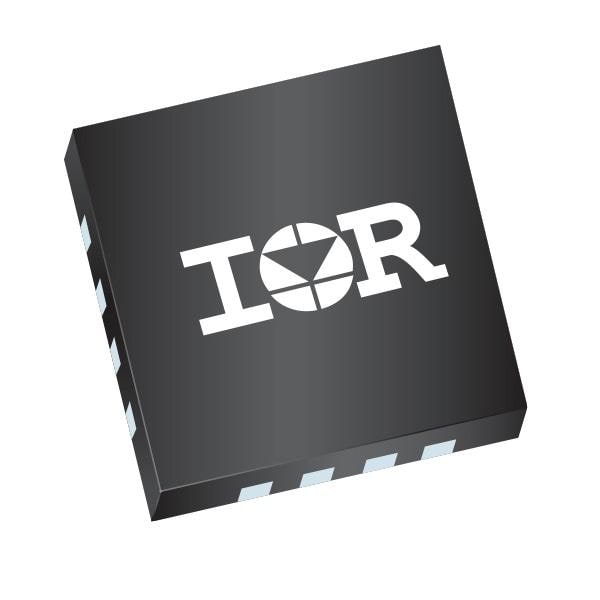

Infineon IRS21844MTRPBF Half-Bridge Hlf Brdg Drvr Sft Trn On Invrt ShutDwn

Width: 4 mm

Height: 0.88 mm

Length: 4 mm

Features: Synchronous

Fall Time: 35 ns

Rise Time: 60 ns

Logic Type: CMOS, TTL

Technology: Si

Unit Weight: 301.055 mg

Mounting Style: SMD/SMT

Output Current: 1.9 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 2.08 W

Propagation Delay - Max: 900 ns

Maximum Turn-On Delay Time: 680 ns

Maximum Turn-Off Delay Time: 270 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
