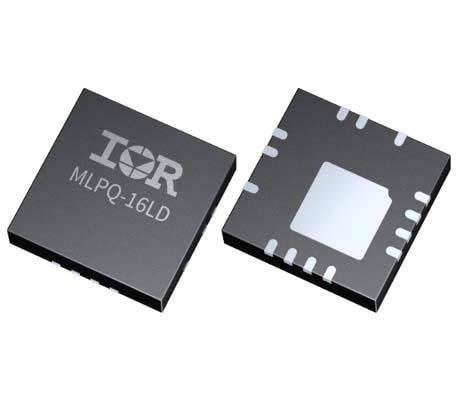

Infineon IRS2007MTRPBFXUMA1 High-Side, Low-Side LEVEL SHIFT JUNCTION ISO

Fall Time: 30 ns

Rise Time: 70 ns

Logic Type: CMOS, TTL

Configuration: Inverting

Mounting Style: SMD/SMT

Output Current: 600 mA

Output Voltage: 10 V to 20 V

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 20 V

Input Voltage - Min: 0 V

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 2.08 W

Maximum Turn-On Delay Time: 220 ns

Maximum Turn-Off Delay Time: 220 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
