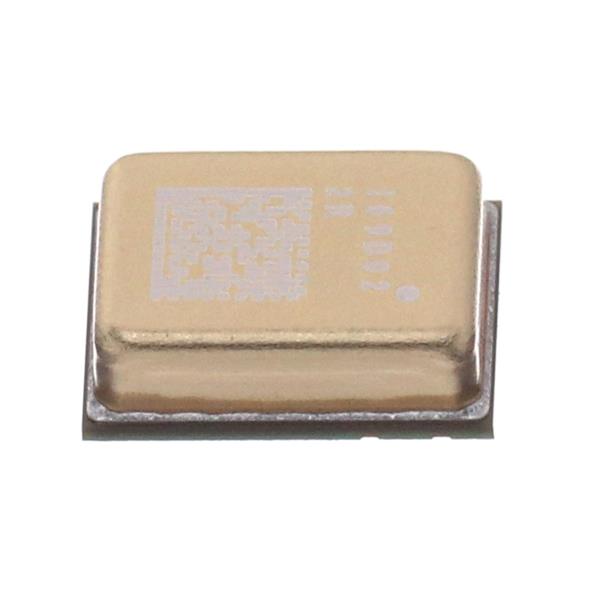

Infineon IM69D120V01XTSA1 Digital MEMS Microphone MIC DBP DIGITAL

Depth: 1.2 mm

Shape: Rectangular

Width: 3 mm

Length: 4 mm

Port Type: Bottom

Tolerance: 1 dB

Dimensions: 4 mm x 3 mm x 1.2 mm

Technology: MEMS

Output Type: Digital

Sensitivity: - 26 dB

Unit Weight: 34.060 mg

Mounting Style: SMD/SMT

Frequency Range: 2.9 MHz to 3.3 MHz

Termination Style: SMD/SMT

Sound Pressure Level: 118 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.62 V

Directional Properties: Omnidirectional

Operating Supply Current: 980 uA

Operating Supply Voltage: 1.62 V to 3.6 V

SNR - Signal to Noise Ratio: 69 dBA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
