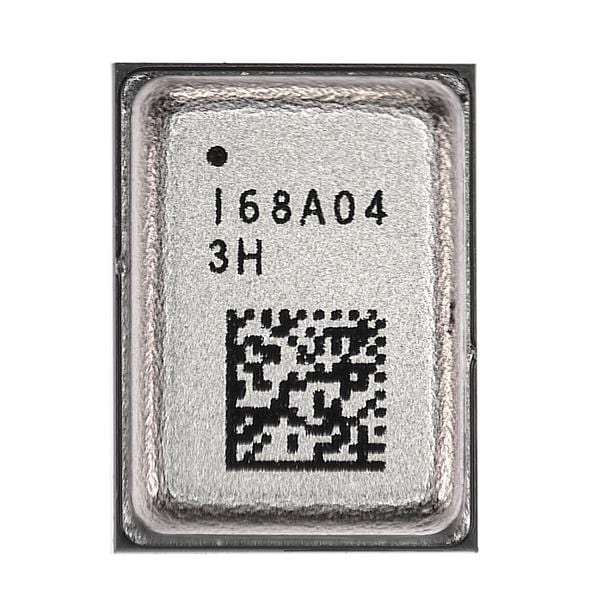

Infineon IM68A130V01XTMA1 Single-ended, Analog MEMS Microphone MIC SBP PP ANALOG
ManufacturerInfineon(View more products from this manufacturer)
ModelIM68A130V01XTMA1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Depth: 0.98 mm
Shape: Rectangular
Width: 2.5 mm
Length: 3.35 mm
Impedance: 400 Ohms
Port Type: Top
Dimensions: 3.35 mm x 2.5 mm x 0.98 mm
Output Type: Analog
Sensitivity: - 38 dBV
Mounting Style: SMD/SMT
Frequency Range: 10 Hz to 15 kHz
Sound Pressure Level: 130 dBSPL
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.4 V
Operating Supply Voltage: 2.4 V to 3.6 V
SNR - Signal to Noise Ratio: 68 dB
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
