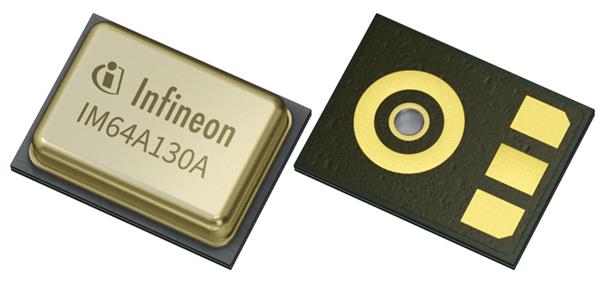

Infineon IM64A130AXTMA1 MEMS Microphone MEMS GROWTH

Depth: 0.98 mm

Shape: Rectangular

Width: 2.5 mm

Length: 3.35 mm

IP Rating: IP57

Impedance: 400 Ohms

Port Type: Bottom

Dimensions: 2.5 mm x 0.98 mm x 3.35 mm

Output Type: Analog

Sensitivity: - 38 dBV

Qualification: AEC-Q103

Mounting Style: SMD/SMT

Frequency Range: 20 Hz to 20 kHz

Termination Style: Solder

Sound Pressure Level: 116 dBSPL

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.4 V

Operating Supply Current: 105 uA

Operating Supply Voltage: 2.6 V

SNR - Signal to Noise Ratio: 64 dBA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
