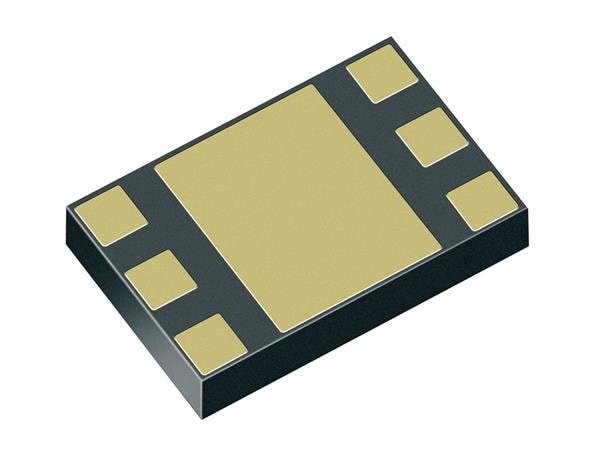

Infineon BGB 707L7ESD E6327 Low Noise Amplifiers RF BIP TRANSISTORS

Gain: 27 dB

Technology: SiGe

Unit Weight: 1.580 mg

Mounting Style: SMD/SMT

Test Frequency: 1.5 GHz

NF - Noise Figure: 0.7 dB

Operating Frequency: 2.3 GHz to 2.7 GHz

Supply Voltage - Max: 4 V

Supply Voltage - Min: 1.8 V

Pd - Power Dissipation: 100 mW

Operating Supply Current: 10 mA

Operating Supply Voltage: 1.8 V to 4 V

P1dB - Compression Point: 8 dBm

OIP3 - Third Order Intercept: 19.5 dBm

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C
