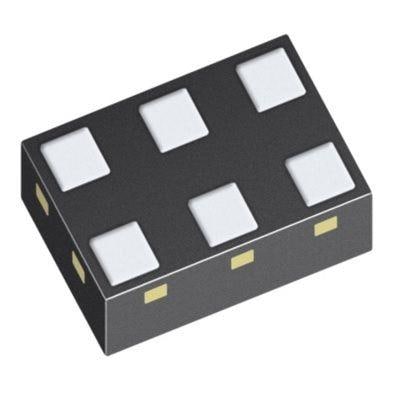

Infineon BGA 524N6 E6327 Low Noise Amplifiers RF MMIC SUB 3 GHZ

Gain: 19.6 dB

Technology: SiGe

Unit Weight: 1 mg

Isolation dB: 37 dB

Mounting Style: SMD/SMT

Input Return Loss: 11 dB

NF - Noise Figure: 0.55 dB

Number of Channels: 1 Channel

Operating Frequency: 1.55 GHz to 1.615 GHz

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 1.5 V

Pd - Power Dissipation: 60 mW

Operating Supply Current: 2.5 mA

Operating Supply Voltage: 1.5 V to 3.3 V

P1dB - Compression Point: - 16 dBm, - 12 dBm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
