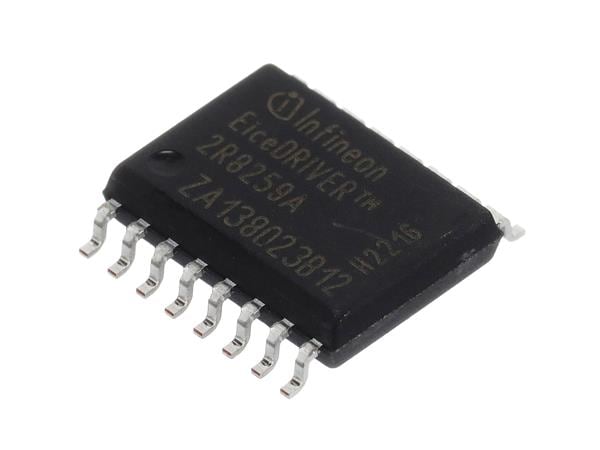

Infineon 2EDR8259HXUMA1 Half-Bridge DRIVER IC

Fall Time: 6 ns

Rise Time: 7.5 ns

Logic Type: TTL

Technology: GaN

Mounting Style: SMD/SMT

Output Current: 9 A

Output Voltage: 20 V

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 17 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 17 V

Supply Voltage - Min: 3 V

Propagation Delay - Max: 47 ns

Maximum Turn-On Delay Time: 47 ns

Maximum Turn-Off Delay Time: 46 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 1.5 Ohms
