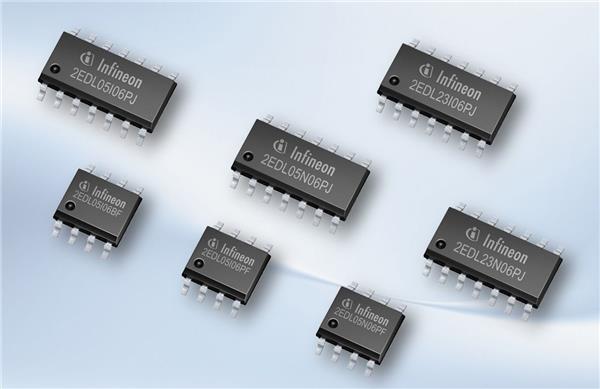

Infineon 2EDL05I06PJ Half-Bridge 600V half-bridge 0.7A,integrated BSD

Shutdown: Shutdown

Fall Time: 24 ns

Rise Time: 48 ns

Logic Type: CMOS, LSTTL

Technology: Si

Unit Weight: 138.260 mg

Mounting Style: SMD/SMT

Output Current: 500 mA

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 850 mW

Propagation Delay - Max: 610 ns

Maximum Turn-On Delay Time: 610 ns

Maximum Turn-Off Delay Time: 590 ns

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
