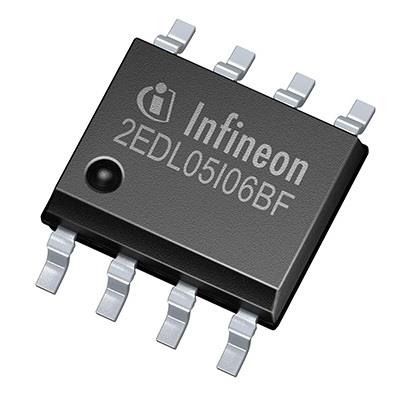

Infineon 2EDL05I06BFXUMA1 Half-Bridge 600V high & low-side 0.7A,integrated BSD

Shutdown: Shutdown

Fall Time: 24 ns

Rise Time: 48 ns

Logic Type: CMOS, LSTTL

Technology: Si

Unit Weight: 1.620 g

Mounting Style: SMD/SMT

Output Current: 500 mA

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 600 mW

Propagation Delay - Max: 610 ns

Operating Supply Current: 300 uA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
