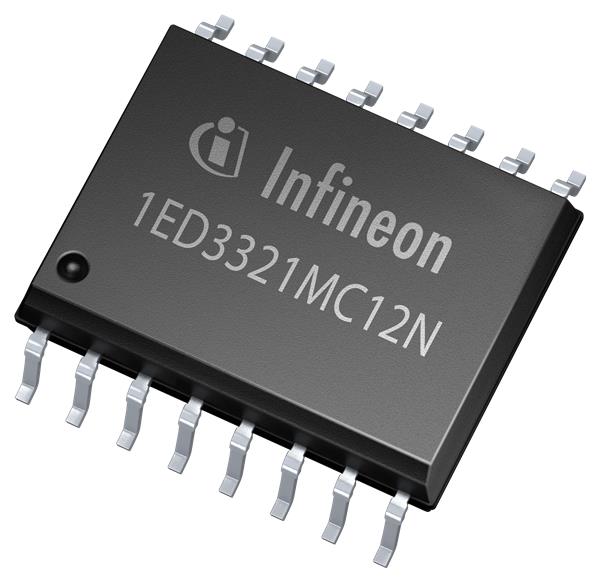

Infineon 1ED3321MC12NXUMA1 High-Side ISOLATED DRIVER

Shutdown: Shutdown

Fall Time: 370 ns

Rise Time: 530 ns

Logic Type: CMOS

Technology: Si

Configuration: Inverting, Non-Inverting

Mounting Style: SMD/SMT

Output Current: 8.5 A

Output Voltage: 35 V

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Pd - Power Dissipation: 810 mW

Propagation Delay - Max: 15 ns

Operating Supply Current: 1.1 mA

Maximum Turn-On Delay Time: 84 ns

Maximum Turn-Off Delay Time: 92 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 2.35 Ohms
