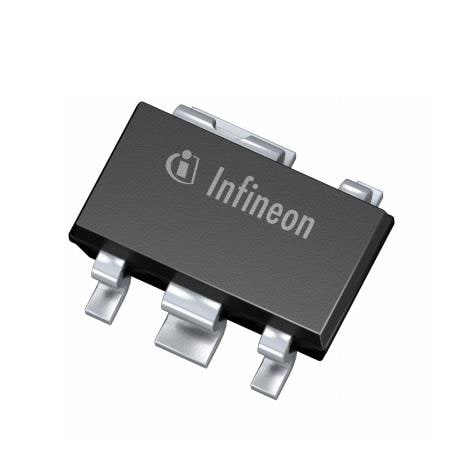

Infineon TLE4250G LDO Voltage Regulators LOW DROPOUT CONTROLLER

Polarity: Positive

Output Type: Fixed

Unit Weight: 14 mg

Mounting Style: SMD/SMT

Output Current: 70 mA

Output Voltage: 40 V

Dropout Voltage: 100 mV

Line Regulation: 10 mV

Load Regulation: 15 mV

Number of Outputs: 1 Output

Quiescent Current: 20 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 4 V

Dropout Voltage - Max: 300 mV at 10 mA

Ib - Input Bias Current: 10 uA

Voltage Regulation Accuracy: 0.5 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
