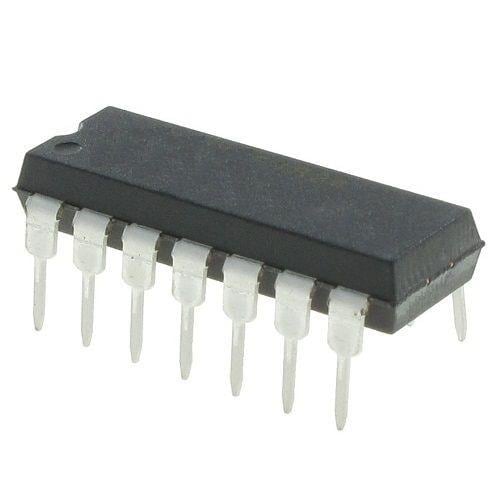

Infineon IR2112PBF High-Side, Low-Side HI LO SIDE DRVR 600V 200mA 135ns

Width: 7.11 mm

Height: 5.33 mm

Length: 20.19 mm

Features: Independent

Fall Time: 65 ns

Rise Time: 130 ns

Logic Type: CMOS, TTL

Technology: Si

Unit Weight: 1.100 g

Mounting Style: Through Hole

Output Current: 200 mA

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 1.6 W

Propagation Delay - Max: 180 ns

Operating Supply Current: 180 uA

Operating Supply Voltage: 10 V to 20 V

Maximum Turn-On Delay Time: 125 ns

Maximum Turn-Off Delay Time: 105 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
