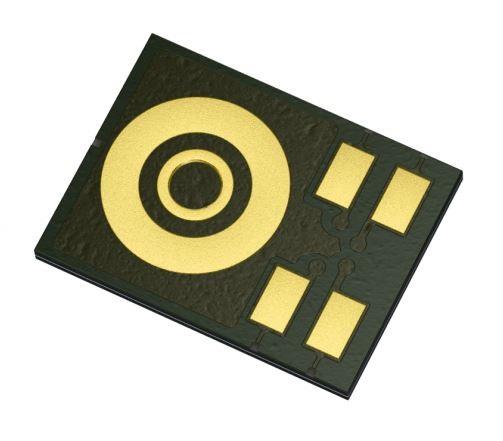

Infineon IM67D130AXTSA2 MEMS Microphone MEMS GROWTH
ManufacturerInfineon(View more products from this manufacturer)
ModelIM67D130AXTSA2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Depth: 1.3 mm
Shape: Rectangular
Width: 3 mm
Length: 4 mm
Port Type: Bottom
Dimensions: 4 mm x 3 mm x 1.3 mm
Output Type: Digital, PDM
Sensitivity: - 36 dBFS
Qualification: AEC-Q103
Mounting Style: SMD/SMT
Frequency Range: 2.9 MHz to 3.3 MHz
Termination Style: Solder
Sound Pressure Level: 130 dBSPL
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.62 V
Operating Supply Current: 980 uA
Operating Supply Voltage: 1.62 V to 3.6 V
SNR - Signal to Noise Ratio: 67 dB
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
