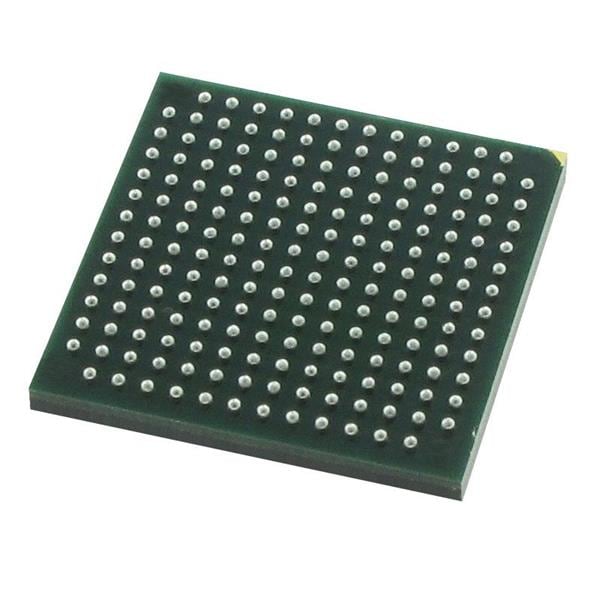

Infineon CY9BF616TBGL-GK7E1 MCUs MM-LEGACY MM

Core: ARM Cortex M3

Data RAM Size: 64 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: CSIO, I2C, LIN, UART, USB

Mounting Style: SMD/SMT

Number of I/Os: 154 I/O

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 512 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 5.5 V

Number of ADC Channels: 32 Channel

Maximum Clock Frequency: 144 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
