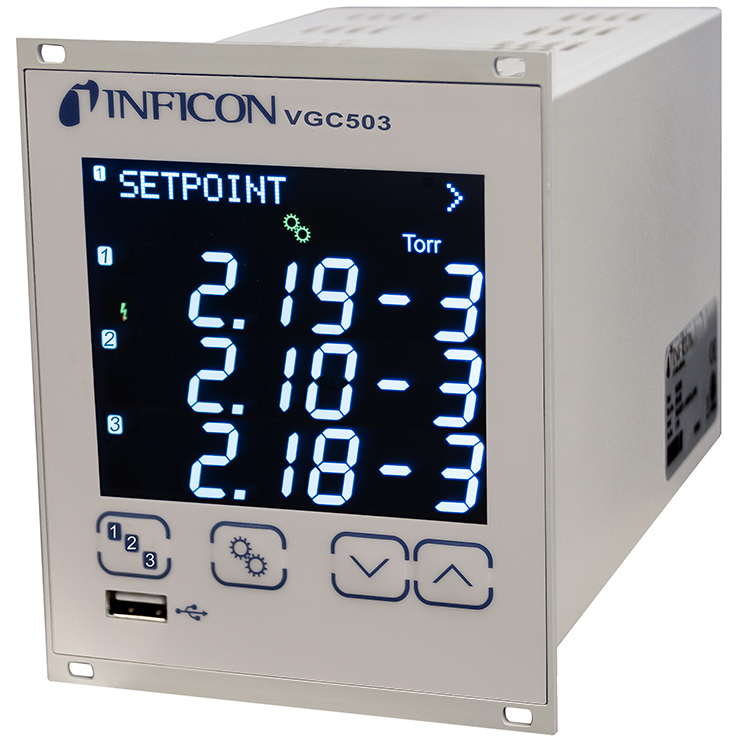

INFICON VGC503 Vacuum Gauge Controller

Measurement channels: 3

Display: LCD, LED backlight

Rate 1/s: 10

Connectable gauges with display range

CDG (A/D)Torr: 1×10^3×F.S. …1×F.S.

PCG (mbarTorr): 5×10^-4…1500

PSG (mbarTorr): 5×10^-4…1000

MPG (mbarTorr): 1×10^-9…1000

PEG( mbarTorr): 1×10^-9…1×10^-2

MAG( mbarTorr): 1×10^-9…1×10^-2

BCG (mbarTorr): 5×10^-10…1500

BPG (mbarTorr): 5×10^-10…1000

HPG (mbarTorr|): 2×10^-6…1000

Measurement unit (selectable): mbar, Torr, Pa, hPa, Micron, V

Setpoints

Setpoint relays: 6

Channel assignment: 1, 2 or 3

Adjustment range: sensor dependent

Hysteresis: adjustable

Relay contact: floating changeover contact

Contact ratingV (ac) • AV (dc) • A: 30 / 1

Connector: D-sub, 25-pin, female

Analog output

Range: 0 ... 10.3 V, sensor analog output signal

Analog output

Programmable analog output: 1

Connector: D-Sub, 9-pin, male

Interface (digital)

Connector: USB slave, master and Ethernet, USB Typ A (stick), USB Type B, FCC68/RJ45

Power Supply: 100 ... 240 V (AC)

Frequency: 50 ... 60Hz

Consumption: ≤90W

Operation temperature (ambiance): +5 ... +50°C
