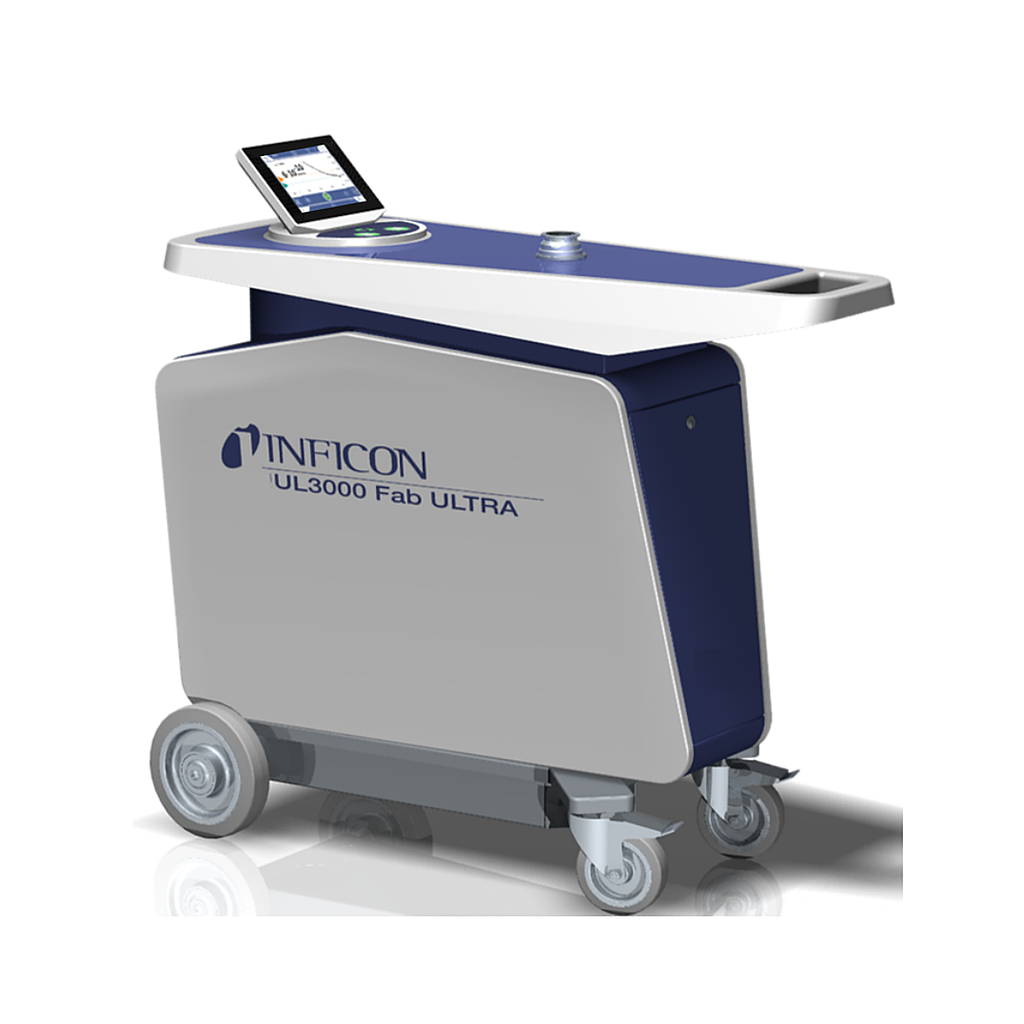

INFICON UL3000 Fab ULTRA Mobile Helium Leak Detector

Min. detectable leak rate for helium (vacuum method): <5 x 10^-12 mbar l/s

Min. detectable leak rate for helium (sniffer mode): <5 x 10^-8 mbar l/s

Max. inlet pressure (MASSIVE mode): 1000 mbar

Pumping speed during evacuation: >36 m³/h

Helium pumping speed (high sensitive mode ULTRA): 4 l/s

Response time: <1 s

Time until ready for operation: <3 min

Detectable masses (ULTRATEST Sensor Technology) 2, 3, 4 (H2, 3He, He)

Ion source: 2 filaments, iridium/yttria oxide coated

Test port: DN 25 KF

Adjustable triggers: 4

Interface: 2 x USB, Ethernet / LAN

Supply voltage: 100 to 240 V 50/60 Hz (AC)

Power consumption: typ. 700 VA, max. 1500 VA

Dimensions (L x W x H): 1050 x 472 x 987 mm (42 x 21 x 34 in.)

Weight: 132 kg

Permissable ambient temperature range (during operation): 10 to 40°C

Additional Features: HYDRO·S, separate sniffer line SL3000 port
