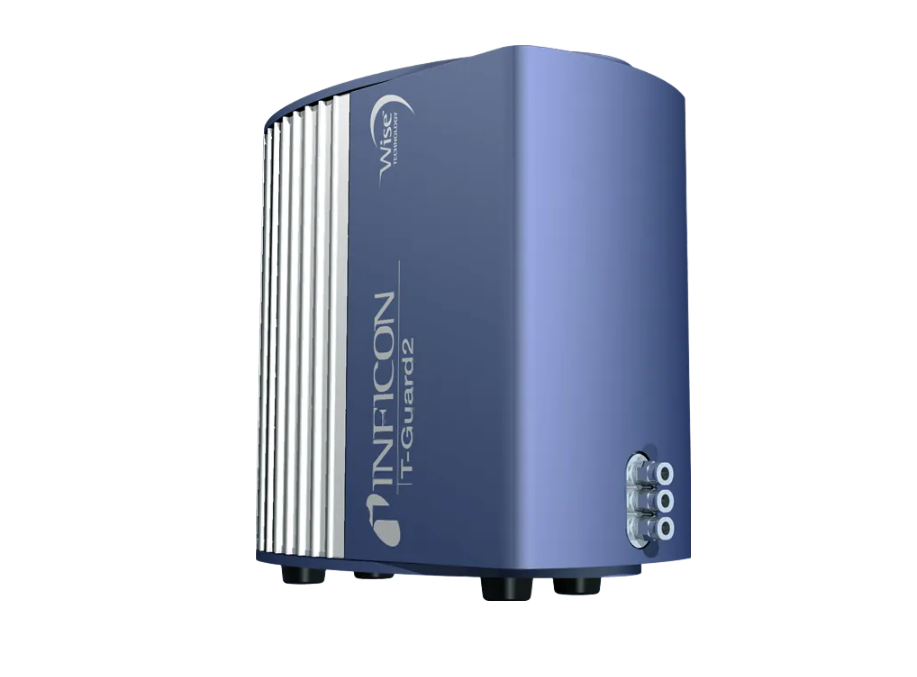

INFICON T-Guard2 Leak Detection Sensor

Minimum detectable helium leak rate: 1 x 10^-6 mbar l/s

Measurement range: 5 decades

Test chamber pressure: 1 atm

Maximum carrier gas flow: 1,000,000 sccm

Probe gas flow Fine / Gross: 180 sccm / 90 sccm

Time constant of the leak rate signal: < 1 s

Helium sensor: Wise TechnologyTM

Run up time: < 3 min

Hose connectors: 6 mm

Control inputs: 6 x PLC compatible (max. 35 V)

Status / Trigger outputs: 8 x relay contacts (max. 25 V AC / 60 V DC / 1 A)

Chart recorder output lin/log: 2 x 0-10 V, programmable

Power supply demand / power consumption: 24 V DC / 100 W

Type of protection: IP20

Dimensions (L x W x H): 272 x 130 x 272 mm; 10.7“ x 5.1“ x 10.7“

Weight: 6.8 kg / 15 lbs

Noise level dB (A): < 56

Recommended fore pump: two-stage diaphragm
