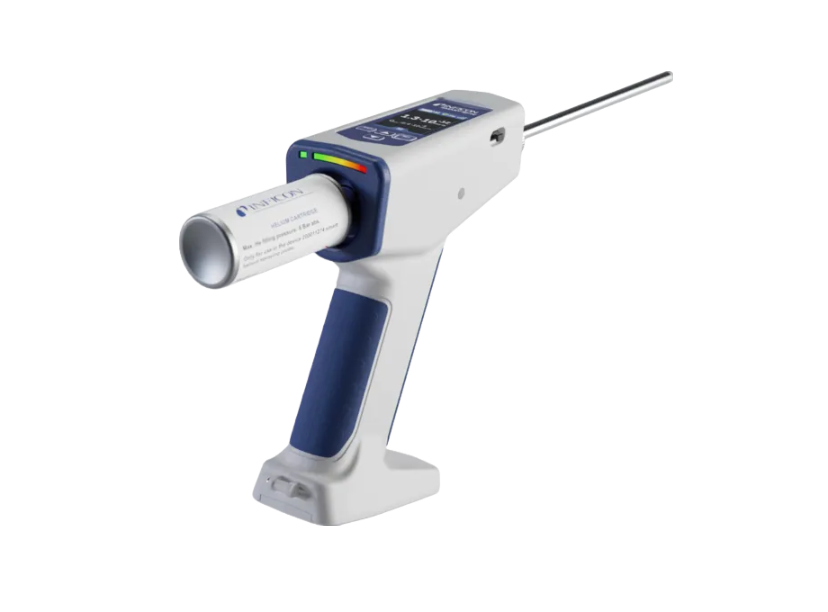

INFICON SMART-Spray Helium Spray Gun

Available flow rates*: S ~ 12 sccm, M ~ 70 sccm, L ~ 250 sccm, XL ~ 1100 sccm

Number of sprays of HeliCan 50 ml**: S > 600, M > 110, L > 30

Number of sprays of HeliCan 405 ml**: S > 5000, M > 900, L > 260, XL > 50

Adjustable duration of each spray: 1.0 to 9.9 s

Battery: Li-Ion, 3.63 V, 3.35 Ah, 12.16 Wh

Battery operating time: > 10 h (at full capacity)

Leak detector remote control: All basic functions, such as: start/stop, zero, etc.

Screen: 1.8 inch 280 x 320 pixel color display: Graphic/numerical leak rates and status display (remote control, battery, approx. HeliCan level, approx. number of sprays remaining)
