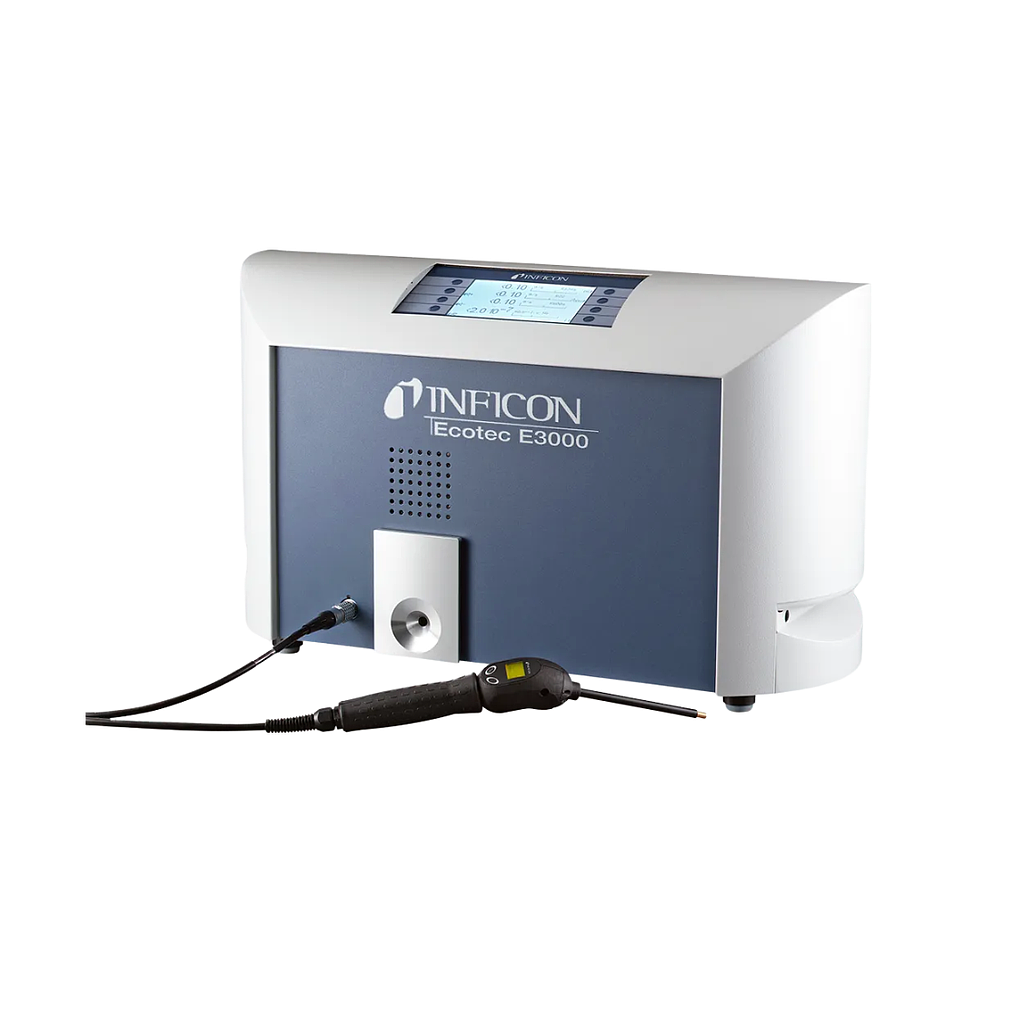

INFICON Ecotec E3000 Multi-gas Leak Detector

Minimum detectable leak rate

R134a: 0.05 g/a (0.002 oz./yr.)

R600a: 0.05 g/a (0.002 oz./yr.)

Helium: 1E-6 mbarl/s

Measuring scale: 0.05 – 999.99 g/a (0.015 – 99.999 oz./yr.)

Sensor response time: 0.3 s

Response time incl. sniffer line: 0.8 s

Maximum number of gases detectable simultaneously: 4

Leak rate units: g/a; oz./yr.; mbar l/s; Pa m3/s; ppm

Start-up time: <2 min

Dimensions (W x H x D): 610 x 370 x 265 mm (24 x 14.6 x 10.4 in.)

Weight: 34 kg (75 lb.)

Gas flow: 160 sccm

Ambient temperature range:10 – 45°C (50 – 113°F)
