Imko SONO VARIO Moisture meter for measuring abrasive and complex materials

Probe housing: Stainless steel with ceramic window

Probe dimensions: Ø 108 mm, height 45 mm

Measuring range: 0-100% vol. moisture content, accuracies up to 0.1% are possible

Conductivity EC-TRIME: 0...12 mS/m

Power supply : +12V bis +24V DC; 3W

Measuring field dimensions: approx 30-50 mm, depending on humidity and material

Calibration: The SONO VARIO probes are supplied with a universal calibration. Standard aggregates can be measured (plug and play).

Visualization: Connection to a PLC: analog interface (0-20mA, 4-20mA). External display (SONO VIEW) or serial interface.

Advanatges

Ideally to measure abrasive materials like sand, gravel and other aggregates

Highly reliable when measuring complex materials like minerals, powders, granules, quartz sand, food and sludge

Thanks to TRIME technology it is unaffected by steam or changing particle sizes of sand and gravel

The additionally measured radar-based conductance up to 12dS/m allows conclusions on other parameters of the material recipe

Simple installation in containers, shafts, silos and conveyor belts

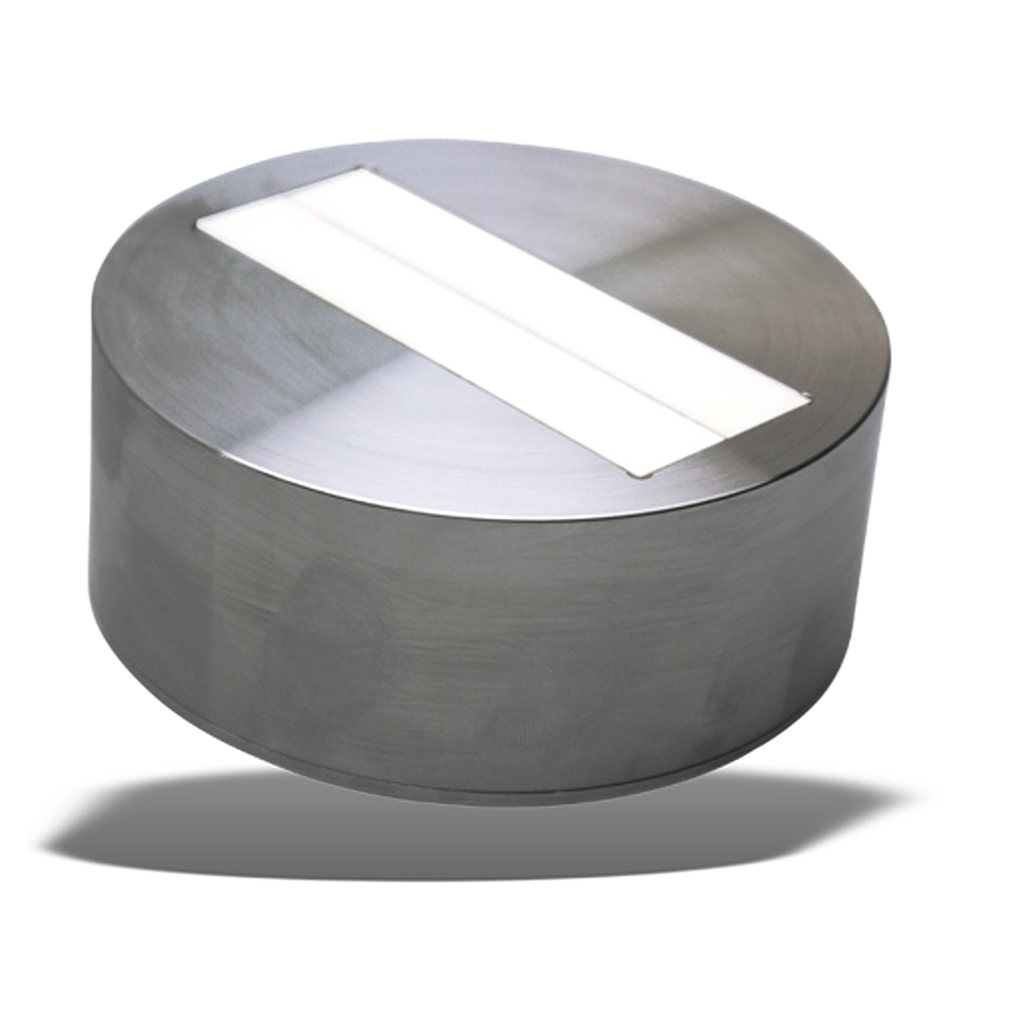

Probe head made of stainless steel with rectangular ceramic window

In case of abrasion at probe head an automatic correction of the measuring value happens – without recalibration
