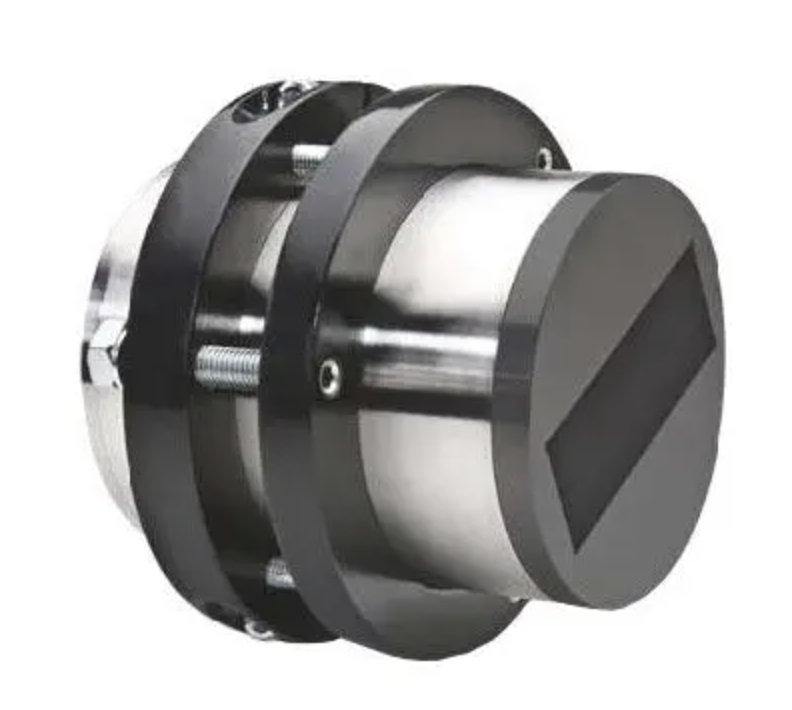

Imko SONO-MIX Concrete moisture

Applications and benefits of SONO-MIX

• Extremely robust wear-resistant sensor head made of massive carbide tip and abrasion-resistant ceramic window

• In case of abrasion at the probe head an automatic correction of the measuring value takes place – without recalibration

• Is suitable to measure steel fiber concrete

• Precise dosage of water is possible thanks to the high accuracy of the moisture measurement

• TRIME technology guarantees high reliability even with steam or changing particle sizes like sand and gravel

• Intelligent preprocessing of measuring values with floating averaging, adjustable filter and up to 15 calibration curves directly in the probe

• Saves a complex evaluation electronic unit

• Two variably adjustable analog outputs 4…20mA allow a trouble-free connection to every control system

• The RS485 Interface enables an interconnected operation of the probe, a data bus protocol to connect several SONO probes is already integrated

• Via optional, external modules the probe may be connected to industry busses like Profibus, Ethernet and others
