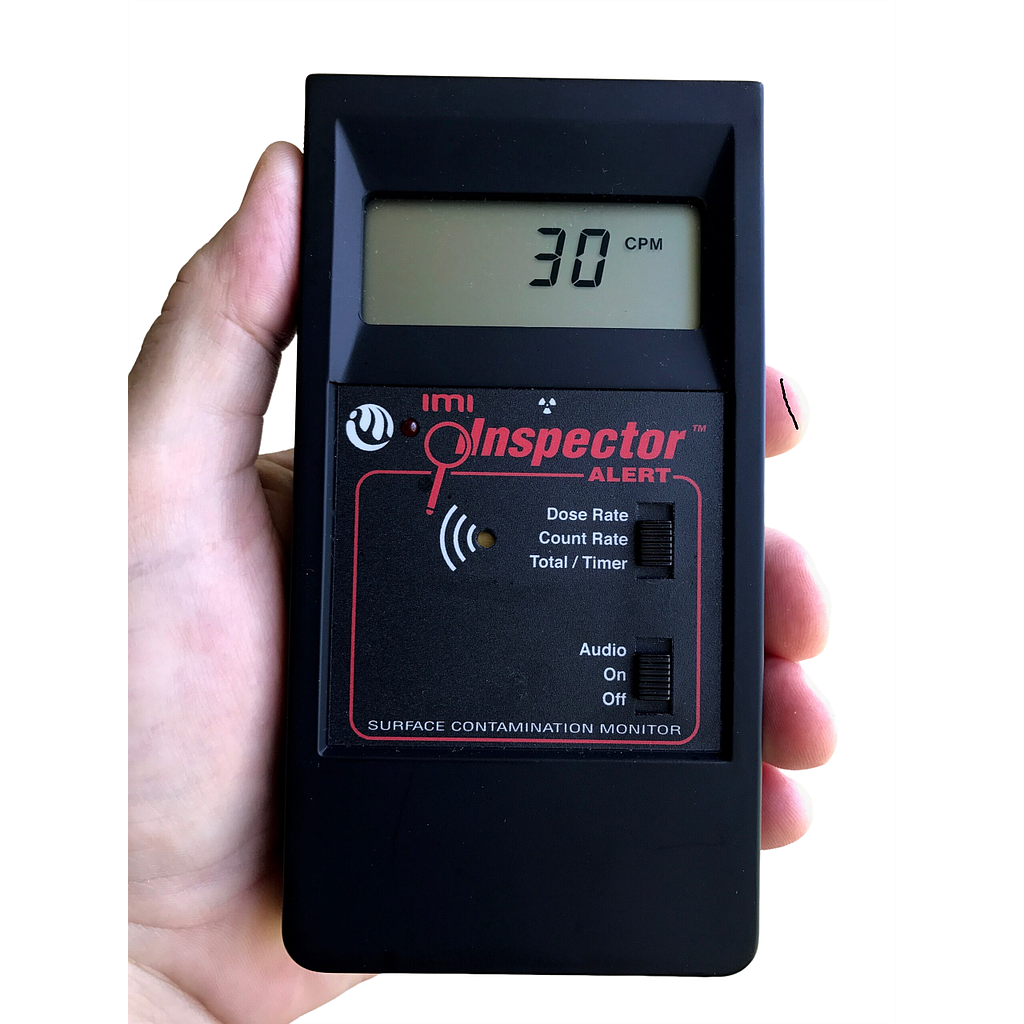

IMI Inspector BLE Inspector alert detects radiation (CPM: 0 to 350,000)

Sensor: Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75″ (45 mm). Mica window density 1.5-2.0 mg/cm²

Display: 4-digit liquid crystal display with mode indicators

Accuracy: ± 10% typical; ±15% maximum

Alert: µSv/hr: 0 to 500; mR/hr: 0 to 50; CPM: 0 to 160,000; Beeper sounds the alert

Anti-Saturation: Readout holds at full scale in fields up to 100 times the maximum reading

Audio: Beeper chirps with each radiation event (can be muted)

Averaging Periods: Display updates every 3 seconds, showing the average for the past 30-second time period at normal levels. The averaging period decreases as the radiation level increases.

Certifications: CE Certified: Emissions: EN 55011:98 + A2 (Class B emissions limits); EN 61326:06 (Class B) RF Emissions Immunity: EN 61326:06 (Annex C) Portable Test and Measurement Equipment; EN 61000-4-2:95 (ESD); EN 61000-4-3: 97; RoHS Compliant, Meets WEEE standards, and ISO 9001:2001 & ISO 14001

Count Light: Red LED flashes with each count

Detector: Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75″ (45 mm). Mica window density 1.5-2.0 mg/cm² Detects Alpha, Beta, Gamma, and X-radiation

Typical Efficiency: For 4 pi at contact

Beta C-14 (49 keV avg. 156 keV max.): 5.3% Bi-210 (390 keV avg. 1.2 MeV max.): 32% Sr-90 (546 keV and 2.3 MeV): 38% P-32 (693 keV avg. 1.7 MeV max.): 33%

Alpha Am-241 (5.5 MeV): 18%

Gamma Sensitivity: 3500 CPM/mR/hr referenced to Cs-137 Smallest detectable level for I-125 is .02 mCi at contact

Manual: IMI Inspector Alert™ V2 Surface Contamination Meter

Operating Range:

µSv/hr: .01 to 1,100

mR/hr: .001 to 110

CPM: 0 to 350,000

CPS: 0 to 5,000

Total: 1 to 9,999,000 counts

Options: Computer software and cable available

Ports: Output: Stereo 3.5 mm jack sends counts to computers, data loggers, other CMOS-compatible devices, earphones, and educational data collection systems. 0-9 V, 1 kOhm impedance. Input: 2.5 mm mono jack provides calibration input. 0-3.3 V, > 5 µs width, rising edge triggered.

Power: One 9-volt alkaline battery or one AA battery

Size: 150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″)

Temperature Range: -20º to +50º C , -4º to +122º F

Timer: Can set sampling periods of 1 minute to 40 hours.

Weight: 323 grams (11.4 oz) including battery

Manual
