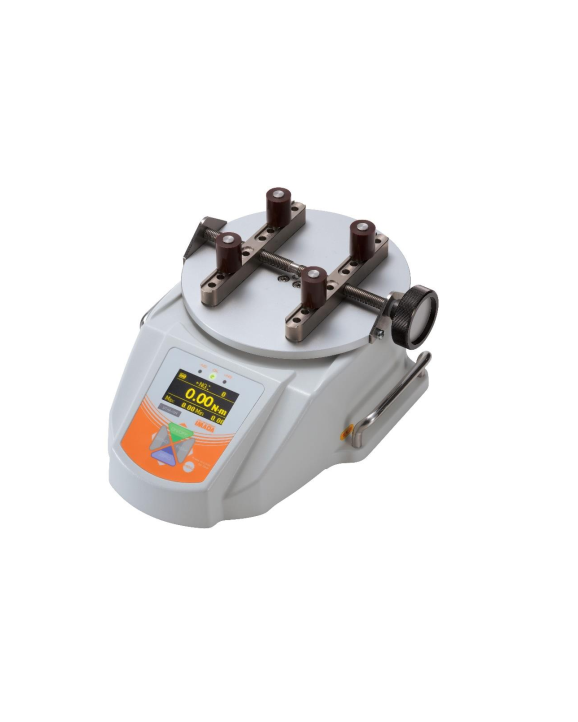

IMADA DTXS-10N Screw Cap Torque Tester (10Nm)

Range: 10Nm (1000N-cm)

Display: 10.00Nm (1000Ncm)

Resolution: 0.01Nm (1Ncm)

Outline: Standard model with various functions

Accuracy: +/-0.5%F.S.+/-1digit

Unit of measurement: N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (switchable) (*1)

Display: 4-digit

Display update: 16 times /sec

Sampling rate: Maximum 2000 data/ sec (*2)

Battery: Approx. 6.5 hours (2 hours full charge) (*3)

Safe overload rating: Approx. 200%

Operating environment: Temperature: 0 to 40 degrees Celsius Humidity: 20 to 80%RH

Functions

Customized display (header and footer) / Peak hold (Clockwise and Counterclockwise)

Internal memory (1000 data)) / Comparator (OK or NG judgment)

Reversible display / Sign inversion/ Zero clear timer/ +NG alarm

Off timer (Auto power off) / Dumping / Time display / Setting lock

Output: USB, RS232C, ±2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm

Overload warning: Approx.110% F.S. (Warning message and alarm)

External contact point: SEND (a point of contact holding), Zero reset, Peak ON/OFF setting

Weight: Approx. 3.0kg (table not included), Approx. 4.5kg (standard table and pins included)

Accessory: AC adapter, CD driver (data logging software), USB cable, Carrying case, L wrench, Standard Table (only for DTXS/A-2/5/10N), Standard Pins (only for DTXS/A-2/5/10N)
