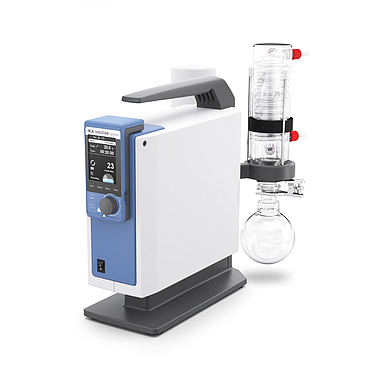

IKA VACSTAR (0020019065) Vacuum Pump

Pump rate max. (50/60Hz): 1.32 m³/h

Pump rate max. (50/60Hz): 22 l/min

Final pressure without gas ballast: 2 mbar

Suction levels: 4

Cylinder: 4

Connection diameter suction side: 8 mm

Connection diameter pressure side: 8 mm

Input pressure: 2 - 1030 mbar

Boiling point detection: yes

Solvent library: yes

Analog speed vacuum control: yes

Speed control: Turning knob

Speed range: 285 - 1200 rpm

Display: TFT

Pressure unit / scale: mbar, hPa, mmHg, Torr

Vacuum sensor: yes

Vacuum sensor type: ceramic Al2O3

Pressure max. for pressure sensor: 1.2 bar

Measurement range (absolute): 1 - 1030 mbar

Control range: 1 - 1030 mbar

Resolution pressure: 1 mbar

Measurement uncertainty: 1 mbar

Venting valve: yes

Condensate trap: yes

Emission condenser: yes

Timer: yes

Noise at low. pressure: 54 dB(A)

Material in contact with mediumAl2O3, PTFE, FPM, PPS

housing material: alu-cast coating / thermoplastic polymer

Mode automatic: yes

Mode manual: yes

Mode pump %: yes

Mode program: yes

Dimensions (W x H x D): 270 x 435 x 500 mm

Weight: 19 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

RS 232 interface: yes

USB interface: yes

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 140 W

Power input standby: 1.5 W
