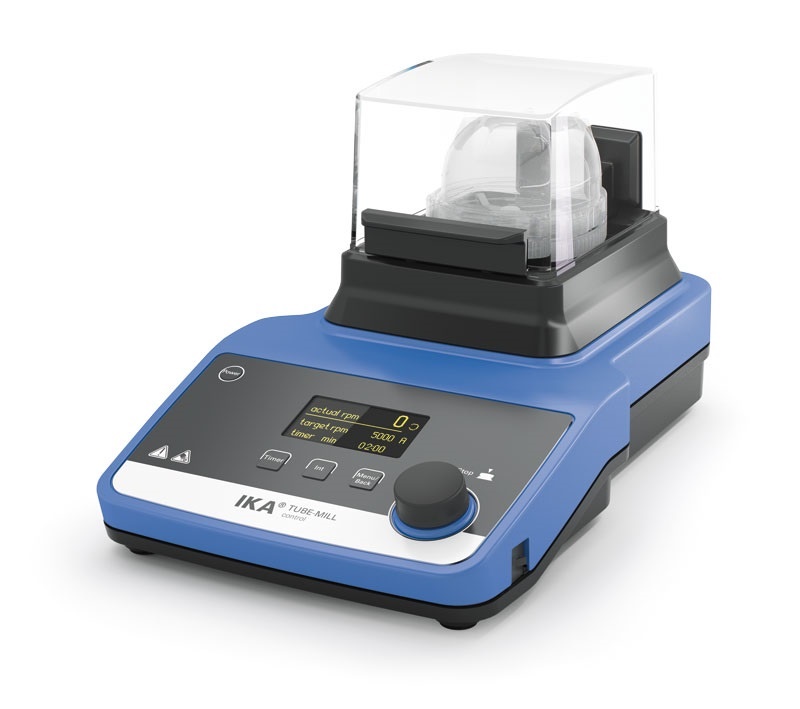

IKA Tube Mill control (0004180000)

Process type: batch

Operating principle: cutting/impact

Motor rating input: 100 W

Motor rating output: 80 W

Speed range: 5000 - 25000 rpm

Speed deviation: 2 ±%

Circumferential speed max.: 65 m/s

Useable volume max.: 40 ml

Feed hardness max.: 5 Mohs

Feed grain size max.: 10 mm

Power-ON time: 3 min

Mill feed can be cooled in milling chamber with dry iceyes

Dimensions (W x H x D): 180 x 170 x 300 mm

Weight: 2.7 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity80 %

Protection class according to DIN EN 60529: IP 30

USB interface: yes

Voltage: 220 - 240 / 100 - 120 / 100 V

Frequency: 50/60 Hz

Power input: 100 W
