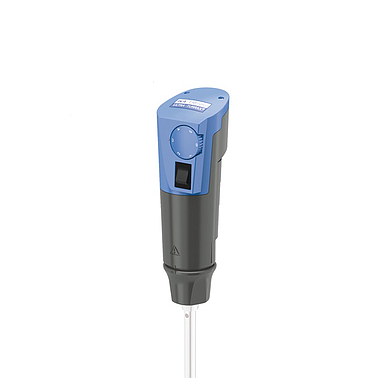

IKA T 10 basic ULTRA-TURRAX® (0003737000) dispersers

Motor rating input: 125 W

Motor rating output: 75 W

Volume range (H2O): 0.0005 - 0.1 l

Viscosity max.: 5000 mPas

Speed range: 8000 - 30000 rpm

Speed control: stepless

Speed display: scale

Noise without element: 65 dB(A)

Extension arm diameter: 8 mm

Extension arm length: 100 mm

Process type : batch

Power-ON time: 10 min

Power-OFF time: 5 min

Dimensions (W x H x D): 56 x 178 x 66 mm

Weight: 0.5 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 30

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 125 W
