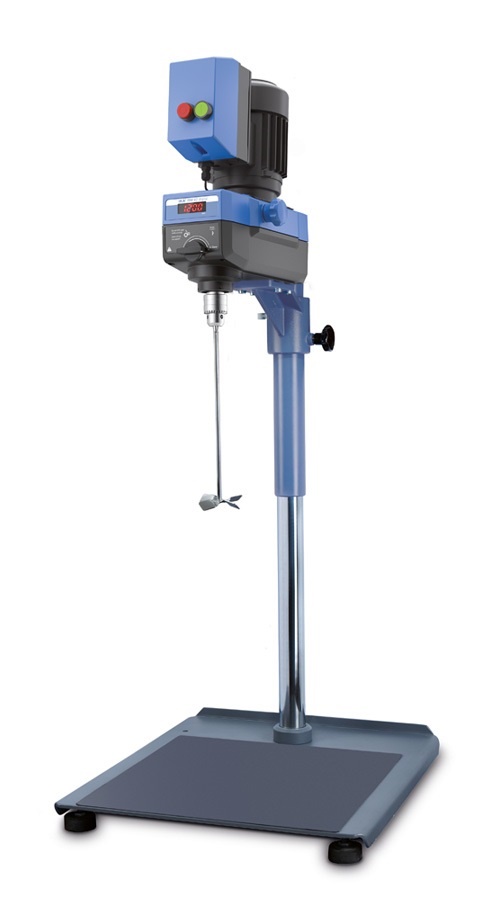

IKA RW 47 digital Package (0009023300) overhead stirrer

Stirring quantity max. per stirring position (H2O): 200 l

Motor rating input: 513 W

Motor rating output: 370 W

Motor principlethree-phase current

Speed display: LED

Speed range: 57 - 1300 rpm

Viscosity max.: 100000 mPas

Output max. at stirring shaft: 300 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 3000 Ncm

Torque max. at stirring shaft at 60 1/min (overload): 4642 Ncm

Torque max. at stirring shaft at 100 1/min: 3000 Ncm

Torque max. at stirring shaft at 1.000 1/min: 285 Ncm

torque I max.: 3000 Ncm

torque II max.: 620 Ncm

Speed range I (50 Hz): 57 - 275 rpm

Speed range II (50 Hz): 275 - 1300 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement: 10 ±rpm

Stirring element fastening: chuck

Chuck range diameter: 3 - 16 mm

Hollow shaft, inner diameter: 13 mm

Fastening on stand: flange

Speed control: mechanical

Nominal torque: 30 Nm

housing material: alu-cast coating / thermoplastic polymer

Dimensions (W x H x D): 145 x 465 x 358 mm

Weight: 16 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 54

Voltage: 3 x 400 / 3 x 230 V

Frequency: 50 Hz

Power input: 513 W

Datasheet
