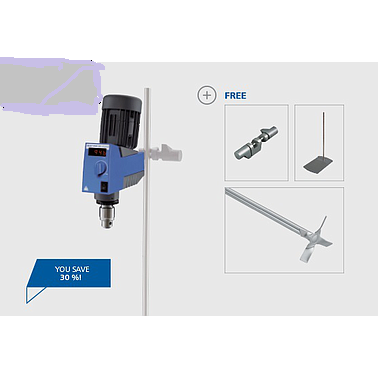

IKA RW 20 digital Package (0009011600) overhead stirrer

Stirring quantity max. per stirring position (H2O): 20 l

Motor rating input: 70 W

Motor rating output: 35 W

Speed display: LED

Speed range: 60 - 2000 rpm

Viscosity max.: 10000 mPas

Output max. at stirring shaft: 26 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 150 Ncm

Torque max. at stirring shaft at 60 1/min (overload): 300 Ncm

Torque max. at stirring shaft at 100 1/min: 150 Ncm

Torque max. at stirring shaft at 1.000 1/min: 24 Ncm

Speed range I (50 Hz): 60 - 500 rpm

Speed range II (50 Hz): 240 - 2000 rpm

Speed range I (60 Hz): 72 - 600 rpm

Speed range II (60 Hz): 288 - 2400 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

deviation of speed measurement: 30 ±rpm

Stirring element fastening: chuck

Chuck range diameter: 0.5 - 10 mm

Hollow shaft, inner diameter: 10.5 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 13 mm

Extension arm length: 160 mm

Speed control: mechanical

Nominal torque: 1.5 Nm

Dimensions (W x H x D): 88 x 294 x 212 mm

Weight: 3.1 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

Voltage: 220 - 240 / 100 - 115 V

Frequency: 50/60 Hz

Power input: 72 W
