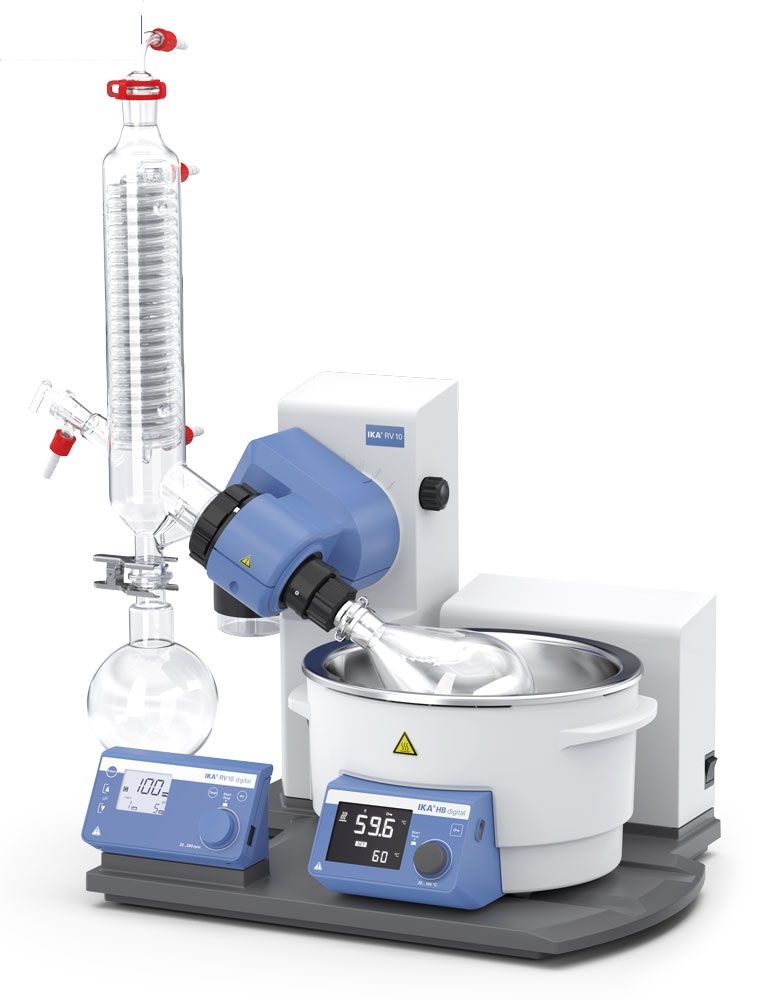

IKA RV 10l V (0010004799) Digital Rotary Evaporators

Type of cooling: vertical

Cooling surface: 1500 cm2

Motor principle: DC

Speed range: 20 - 280 rpm

Reversible direction of rotation: yes

Lift: Motor

Stroke: 140 mm

Heating temperature range: room temp. - 180 °C

Heat output: 1350 W

Set temperature resolution: 1 ±K

Filling volume max.: 4 l

Timer: yes

Dimensions (W x H x D): 500 x 430 x 410 mm

Weight: 20 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

RS 232 interface: yes

Voltage: 220 - 240 / 115 / 100 - 240 / 100 - 120 / 100 - 115 V

Frequency: 50/60 Hz

Power input: 1400 W
