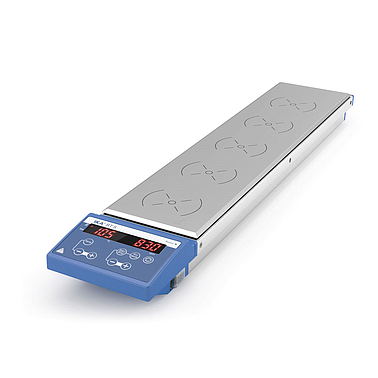

IKA RT 5 (0003690600) Magnetic stirrer

Number of stirring positions: 5

Stirring position distance: 90 mm

Speed deviation of individual stirring positions: 0 %

Stirring quantity max. per stirring position (H2O): 0.4 l

Speed control: 10 RPM Steps

Speed range: 0 - 1000 rpm

Stirring bar length: 25 - 30 mm

Heat output: 175 W

Heating temperature range: room temp.: - 120 °C

Heat control: LED

Heating rate heating plate: 3 K/min

Adjustable safety circuit: 50 - 150 °C

Set-up plate material: Aluminium alloy

Set-up plate dimensions: 110 x 495 mm

Dimensions (W x H x D): 120 x 60 x 610 mm

Weight: 4 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 40

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 200 W
