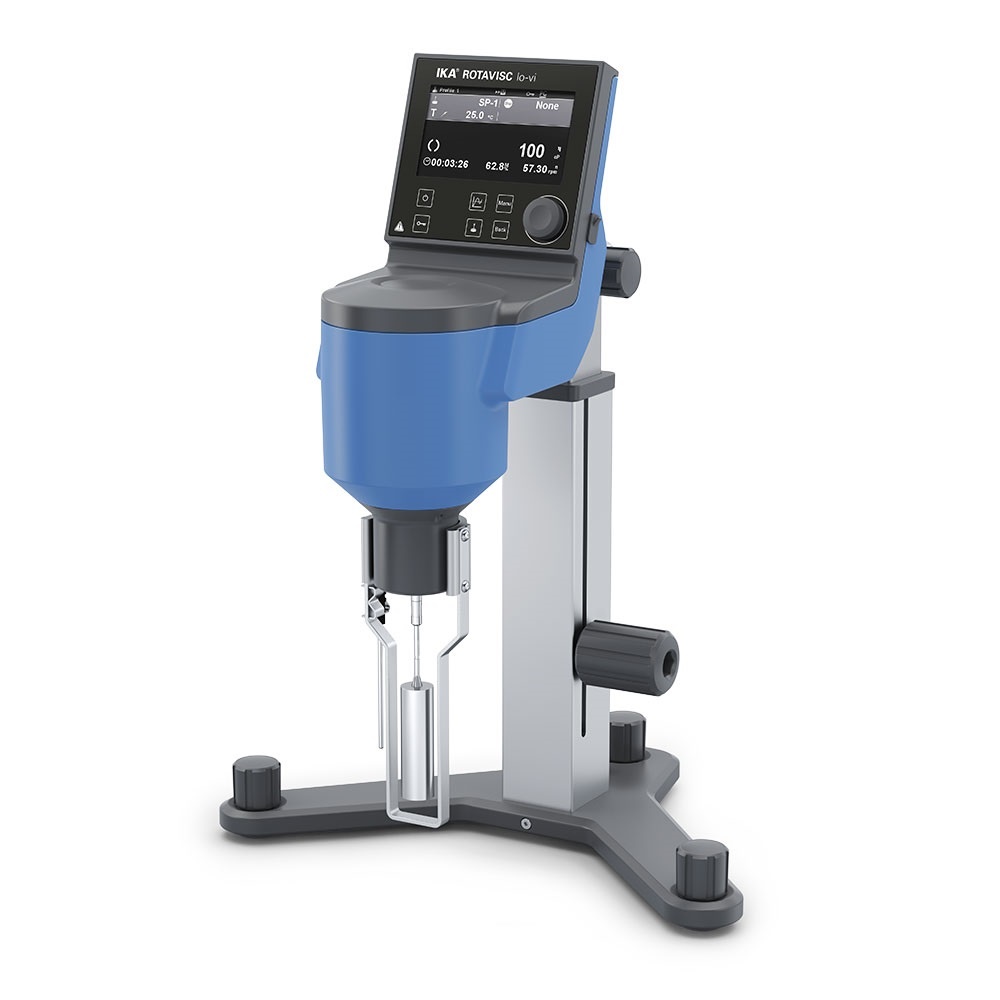

IKA ROTAVISC lo-vi Complete (0025000310) Viscometer

Viscosity Measuring Range: 6000000 mPas

Viscosity Accuracy (FSR): 1 %

Viscosity Repeatibility (FSR): 0.2 %

Spring torque: 0.0673 mNm

Guard rail: lo-vi

Measuring spindle series: SP set-1

Motor rating output: 4.8 W

Overload protection: yes

Direction of rotation: right

Display: TFT

Speed display: TFT

Speed range: 0.01 - 200 rpm

Setting accuracy speed: 0.01 ±rpm

Speed control: TFT

Torque display: yes

Torque measurement: trend

Timer: yes

Timer display: TFT

Time setting range: 0.017 - 6000 min

Temperature measurement resolution: 0.1 K

Working temperature display: TFT

Connection for ext. temperature sensor: PT 100

Graph function: yes

Operating mode: timer and continuous operation

Calibration option: yes

Touch function: yes

Pemitted density: 9999 kg/dm3

Working temperature: -100 - 300 °C

Fastening on stand: extension arm

Support rod diameter (with integrated fastening on stand): 16 mm

Telescope stand stroke: 200 mm

Plug-in coupling (Ø): 12 mm

Basic container volume: 600 ml

Stand: Rotastand

Stroke max.: 200 mm

Diameter: 16 mm

Dynamic load: 5 kg

Dimensions (W x H x D): 351 x 629 x 372 mm

Weight: 7.1 kg

Permissible ambient temperature: 0 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 40

RS 232 interface: yes

USB interface: yes

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 24 W

Power input standby: 0.06 W

DC Voltage: 24 V=

Current consumption: 1000 mA
