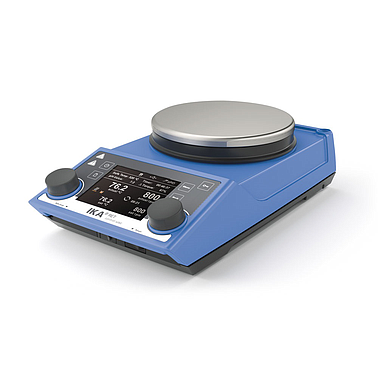

IKA RET control-visc control (0005020000) Magnetic stirrer and integrated balance

Number of stirring positions: 1

Stirring quantity max. per stirring position (H2O): 20 l

Motor rating output: 9 W

Direction of rotation: right

Speed display set-value: TFT

Speed display actual-value: TFT

Speed control: Turning knob

Speed range: 50 - 1700 rpm

Setting accuracy speed: 10 rpm

Stirring bar length: 20 - 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): 28 +K

Heat output: 600 W

Temperature display set-value: TFT

Temperature display actual-value: TFT

Temperature unit: °C / °F

Heating temperature range: Room temp. + device self heating - 340 °C

Heat control: Turning knob

Temperature setting range: 0 - 340 °C

Temperature setting resolution of heating plate: 0.1 K

Connection for ext. temperature sensor: PT100/PT1000 (dual sensor)

Characteristics in the medium with temperature sensor: 1l M50 Oil at H1500

Temperature medium max.: 270 °C

Heating rate medium: 7 K/min

Temperature setting resolution of medium: 0.1 K

Adjustable safety circuit: 50 - 380 °C

Set-up plate material: stainless steel 1.4301

Set-up plate dimensions: Ø 135 mm

Intermittend mode: yes

Viscosity trend measurement: yes

Break detection stirring bar: yes

Timer: yes

pH measurement: yes

Graph function: yes

Programs: yes

Sensor in medium detection (Error 5): yes

Weighing function: yes

Weighing range: 10-5000 g

Weighing accuracy: ±(0.3%+2) g

Load capacity weighing function max.: 5 kg

Dimensions: (W x H x D)160 x 85 x 270 mm

Weight: 2.7 kg

Permissible ambient temperature5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

RS 232 interface: yes

USB interface: yes

Voltage: 220 - 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 650 W
