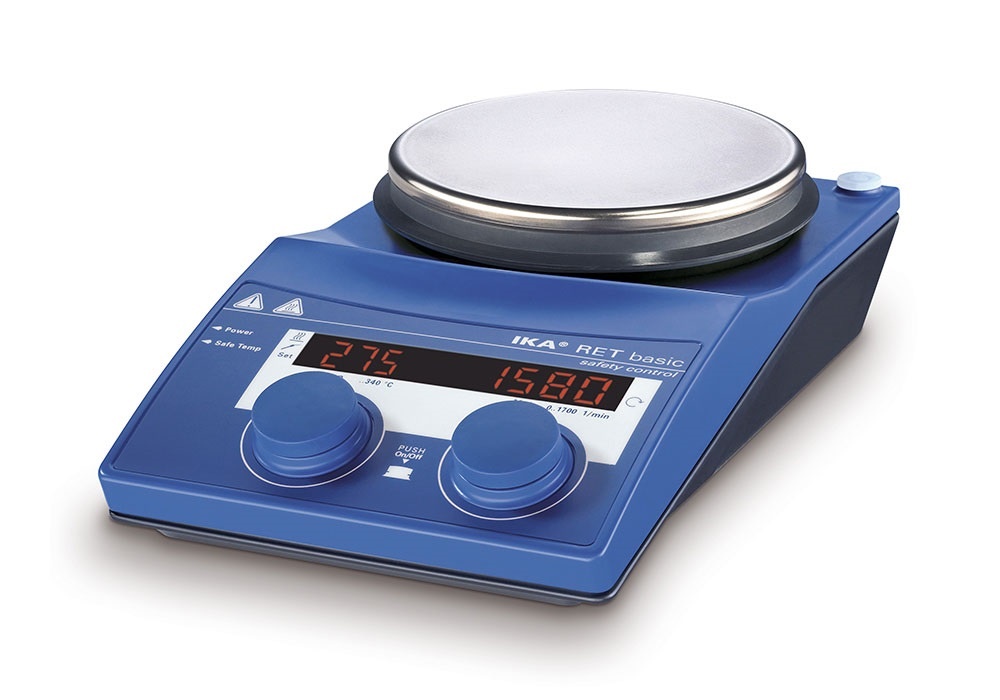

IKA RET basic (0003622000) Magnetic stirrer

Number of stirring positions: 1

Stirring quantity max. per stirring position (H2O): 20 l

Motor rating output: 9 W

Direction of rotation: right

Speed display set-value: LED

Speed display actual-value: LED

Speed control: Turning knob

Speed range: 50 - 1700 rpm

Setting accuracy speed: 1 rpm

Stirring bar length: 20 - 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): 15 +K

Adjustable safety circuit: 50 - 360 °C

Set-up plate material: stainless steel 1.4301

Set-up plate dimensions: Ø 135 mm

Sensor in medium detection (Error 5): yes

Dimensions (W x H x D): 160 x 95 x 270 mm

Weight: 2.5 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

Voltage: 220 - 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 630 W
