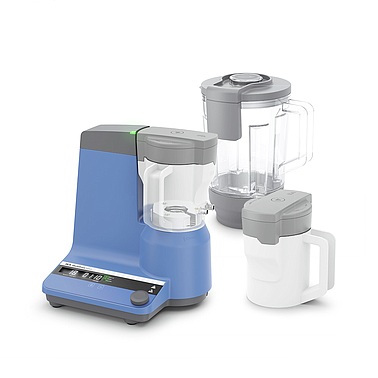

IKA MultiDrive basic (0025002638) Mills

Process type: batch

Operating principle: cutting/impact

Motor rating input: 1000 W

Motor rating output: 800 W

Speed range: 3000 - 20000 rpm

Speed deviation: 5 ±%

Useable volume max.: 2000 ml

Feed hardness max.: 5 Mohs

Feed grain size max.: 7 mm

Material beater/cutter: stainless steel 1.4034

Material milling chamber: stainless steel 1.4301

Material (other): PTFE

Power-ON time: 5 min

Power-OFF time: 10 min

Milling chamber, can be cooled with water: yes

Mill feed can be cooled in milling chamber with dry iceyes

Dimensions (W x H x D): 300 x 450 x 250 mm

Weight: 10 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity80 %

Protection class according to DIN EN 60529: IP 31

USB interface: yes

Voltage: 220 - 240 / 100 - 120 V

Frequency: 50/60 Hz

Power input: 1000 W
