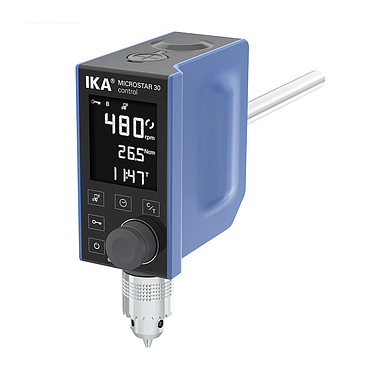

IKA MICROSTAR 30 control (0025001987) overhead stirrer

Stirring quantity max. per stirring position (H2O): 20 l

Motor rating input: 32 W

Motor rating output: 22 W

Motor principle: Brushless DC

Speed display: LED

Speed min.: 30 rpm

Speed min.: 0/30 rpm

Speed max.: 500 rpm

Viscosity max.: 20000 mPas

Output max. at stirring shaft: 15.7 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 30 Ncm

Torque max. at stirring shaft at 60 1/min (overload): 30 Ncm

Torque max. at stirring shaft at 100 1/min: 30 Ncm

Torque max. at stirring shaft at 1.000 1/min: 30 Ncm

torque I max.: 30 Ncm

Speed range I (50 Hz): 30 - 500 rpm

Speed range I (60 Hz): 30 - 500 rpm

Speed control: Turning knob

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Connection for ext. temperature sensor: PT1000

Temperature display: yes

Chuck range diameter: 0.5 - 8 mm

Hollow shaft, inner diameter: 8.5 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 13 mm

Extension arm length: 160 mm

Timer display: yes

Speed control: electronic

Nominal torque: 0.3 Nm

Torque measurement: trend

deviation of torque measurement I: 3 ±Ncm

Timer: yes

Timer display: LCD

Time setting range: 0 - 6000 min

Temperature measuring range: -10 - 350 °C

Temperature measurement resolution: 0.1 K

Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K

Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K

housing material: alu-cast coating / thermoplastic polymer

communication distance (depend onbuilding) max.150 m

Dimensions (W x H x D): 60 x 173 x 136 mm

Weight: 1.26 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 54

USB interface: yes

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 32 W

DC Voltage: 24 V=

Current consumption: 1300 mA
