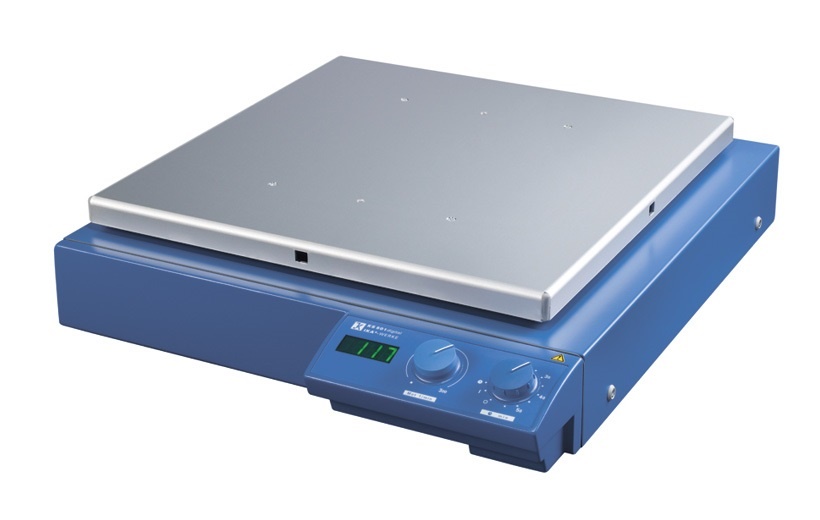

IKA KS 501 digital (0025002985) shakers

Type of movement: orbital

Shaker diameter: 30 mm

Permissible shaking weight (incl. attachment): 15 kg

Motor rating input: 70 W

Motor rating output: 19 W

Permissible ON time: 100 %

Speed range: 0 - 300 rpm

Speed display: 7 segment LED

Timer: yes

Timer display: scale

Time setting range: 1 - 55 min

Operating mode: timer and continuous operation

Shaking table lock: yes

Dimensions (W x H x D): 505 x 120 x 585 mm

Weight: 26 kg

Permissible ambient temperature: 5 - 50 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

Analog output: yes

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 74 W
