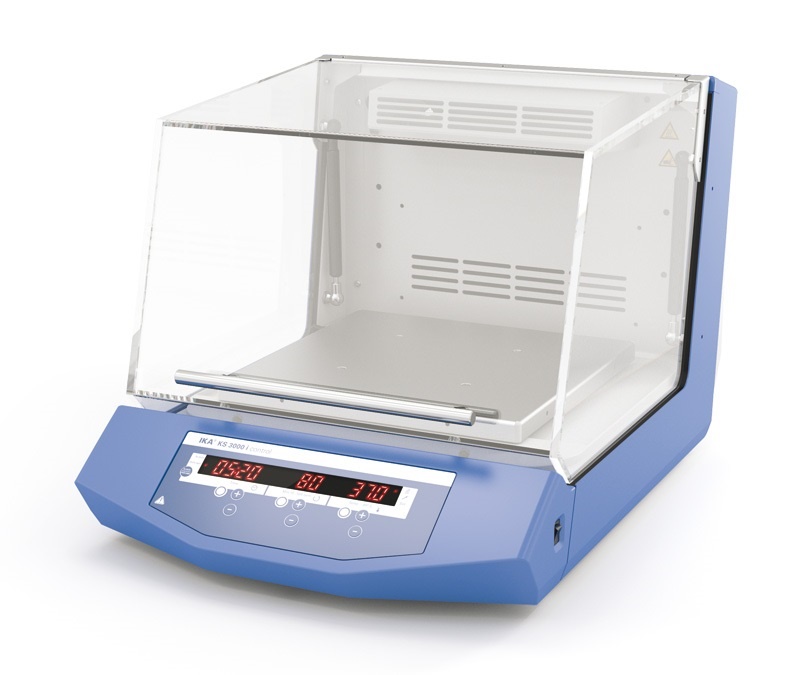

IKA KS 3000 ic control (0003940100) shakers

Type of movement: orbital

Shaker diameter: 20 mm

Permissible shaking weight (incl. attachment): 7.5 kg

Motor rating input: 45 W

Motor rating output: 10 W

Permissible ON time: 100 %

Speed min (adjustable): 10 rpm

Speed range: 10 - 500 rpm

Speed display: LED

Speed deviation: 1 %

Speed control: 1 RPM steps

Timer: yes

Timer display: 7 segment LED

Time setting min.: 1 s

Time setting range: 1 - 59940 min

Operating mode: timer and continuous operation

Heat output: 1000 W

Set temperature resolution: 0.1 ±K

Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C): 0.5 ±K

Temperature display: yes

Temperature range (inlet T>3°C)room temp.: - 10° - 80° °C

connections for external cooling: yes

embedded cooling coil: yes

Operating area inner chamber: 330 x 330 x 258 mm

Total volume inner chamber: 50 l

Raw material housing: Sheet metal powder coat

Raw material hood: PMMA

Raw material front foilpolyester

Raw material front panel: ABS painted

Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C): 0.05 ±K

Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C): 0.5 ±K

Height with open hood: 875 mm

Dimensions (W x H x D): 465 x 430 x 695 mm

Weight: 37 kg

Permissible ambient temperature: 15 - 32 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 30

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 1120 W

Datasheet
